Name: Silverstone RM41-H08 4U form factor 5 x 3.5” Hot-swappable and 3 x 5.25" server chassis - A-sashi Technology
SKU: SST-RM41-H08
Price: 1580.00 MYR
Availability: OutOfStock

Silverstone RM41-H08 4U form factor 5 x 3.5” Hot-swappable and 3 x 5.25″ server chassis

👁 Currently 26 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

Supports up to five 12 Gbit/s 3.5" SAS / SATA drives with tray-free & screw-less design

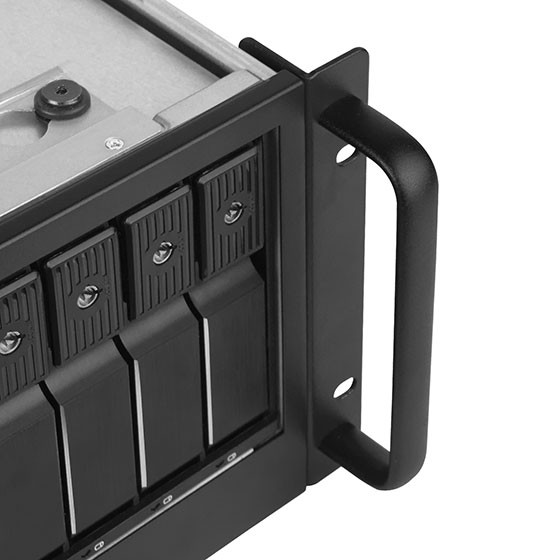

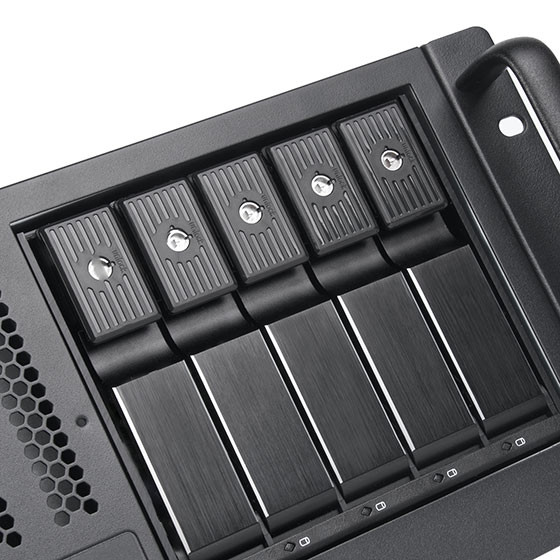

Drive tray features anti-theft lock design to keep confidential information secured
Supports hot-swap function

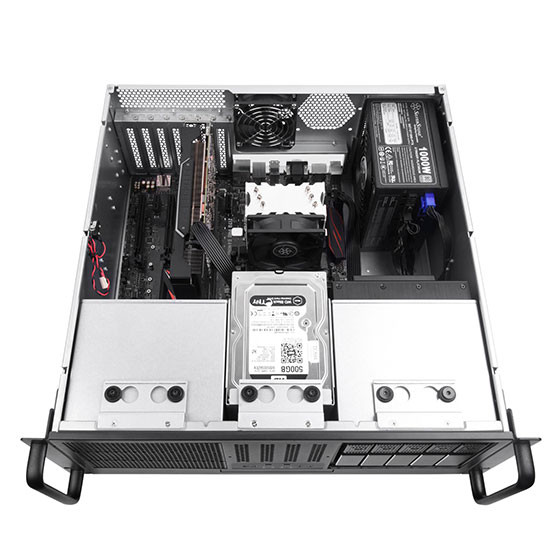

Supports up to SSI-CEB motherboard
Supports 7 standard size PCI / PCIe expansion slots
Three 5.25" drive bays for a more flexible installation of 5.25" devices

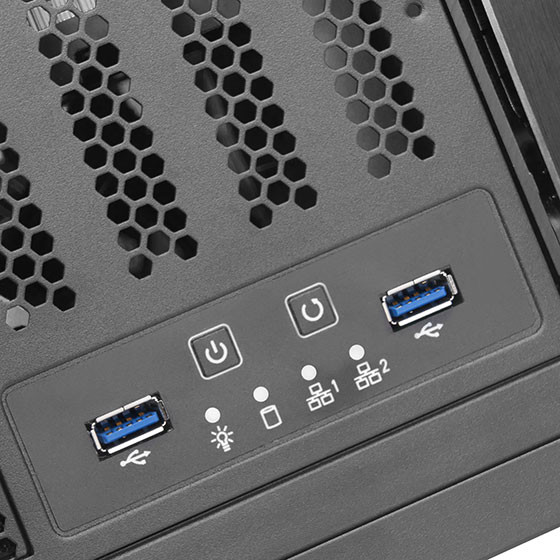

Front I/O with 5Gbps USB 3.1 Gen1 ports, backward compatible with USB 2.0 / 1.1

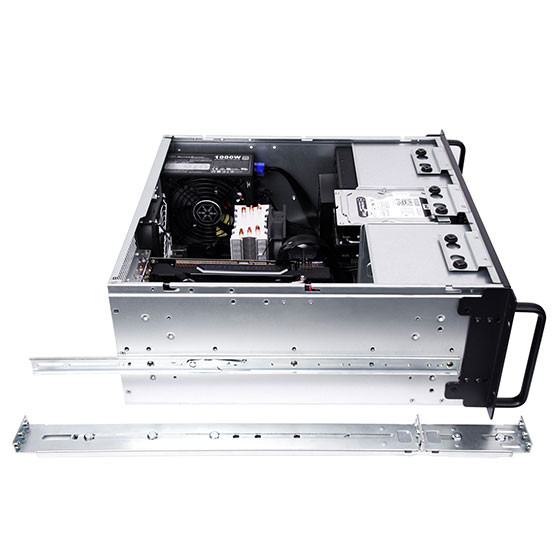

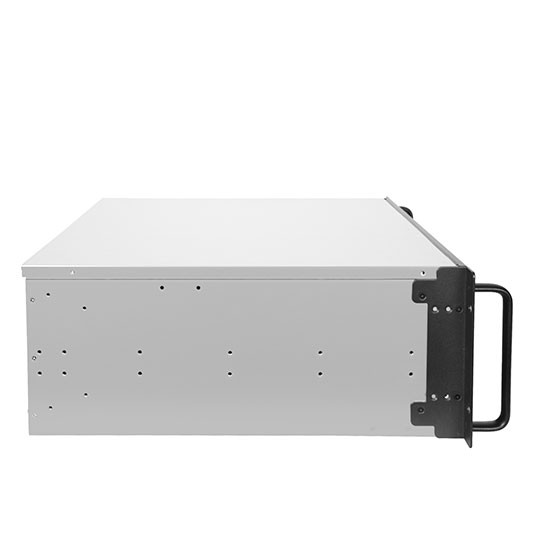

Pre-drilled mounting holes for easy sliding rails installation.

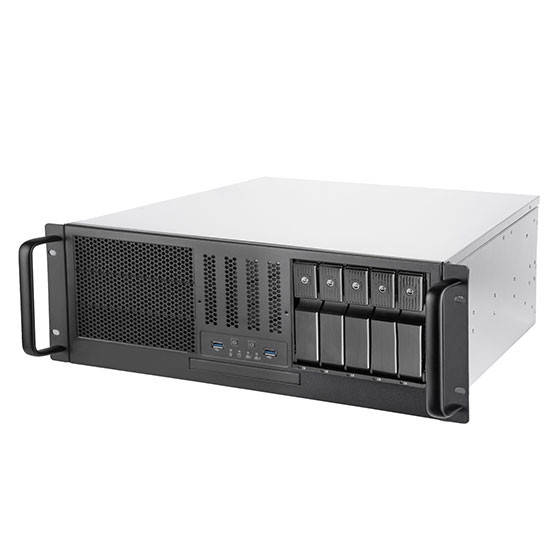

Distinctive exterior

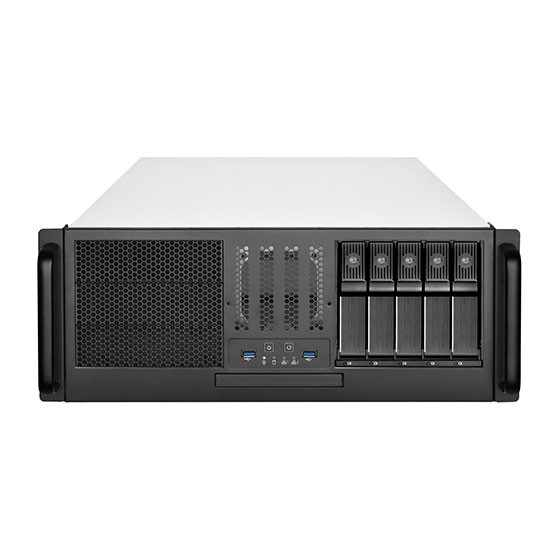

Distinctive front panel features a handle design allowing for easy accessibility to the internal components, along with two USB 3.0 data transfer ports

Distinctive exterior

Storage device performance

Supports SAS 12G/ SATA 6Gb/s high-speed transfer with a hot-swappable and tray-free design

Storage device performance

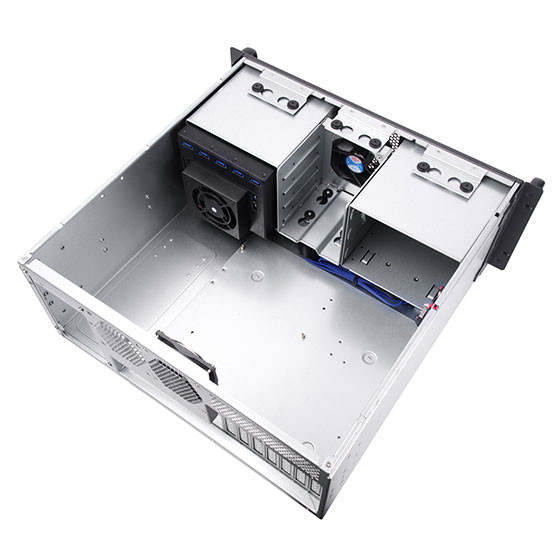

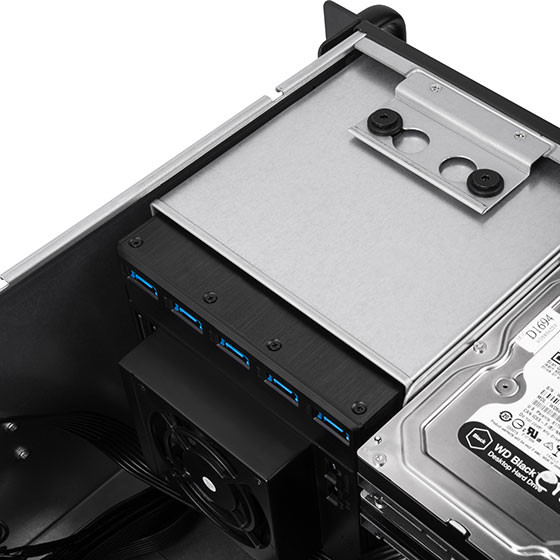

Storage bays

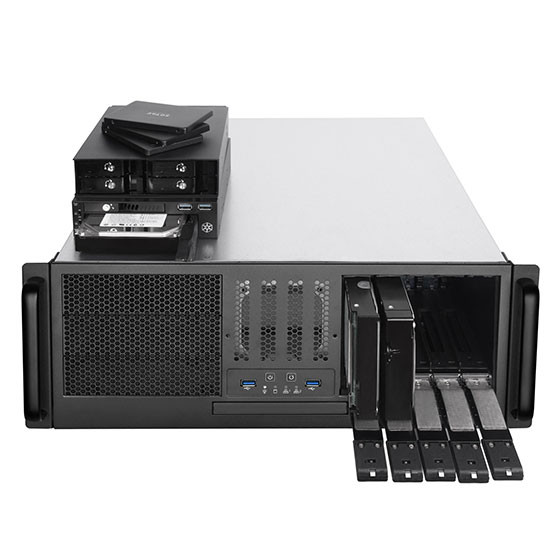

Offers users a wide range of hard drive options including support for 5.25"/3.5"/2.5" hard drives and slim optical drives
(Optional 5.25” storage device: FS204, FP510)

Storage bays

Product Specifications

Model No.

SST-RM41-H08

Chassis form factor

Motherboard

SSI-CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")

Material

SGCC

Main metal thickness

1.2mm

Drive Support

External

5.25" x 3
3.5" x 5 (Hot-swappable)

Internal

3.5" x 4
2.5" x 2 (Support up to 15mm)

2.5" x 1 (Support up to 15mm) or slim optical drive (Support up to 12.7mm)

Cooling system

Front

80 x 25mm fan slot x 1

Rear

80 x 25mm fan slot x 2 (both fans included)

Internal

80mm fan x 1, 3000rpm (on hot-swap cage)

Limitation of CPU cooler

Height w/ expansion card retainer: 130mm
Height w/o expansion card retainer: 148mm

Expansion Slot

7 standard PCI / PCIe expansion slots

Limitation of expansion card

Length w/ 5.25” drive cage: 278mm
Length w/o 5.25” drive cage: 426mm

Power Supply

PS2 / ATX / Mini Redundant (supports up to 200mm)
2U Redundant (RM41-H08 V2.0 or after)

Front I/O Port

USB 3.1 Gen1 Type-A x 2

Front buttons

Power On / Off, restart

LED Indicators

Power status x 1, system reset x 1, network status x 2

Dimension

430mm (W) x 176mm (H) x 446mm (D)

Net Weight

10.7 kg

* Your system must have a SAS controller to use SAS hard drives
** For maximum supported capacity and drive array, please consult with your SAS or SATA drive manufacturer

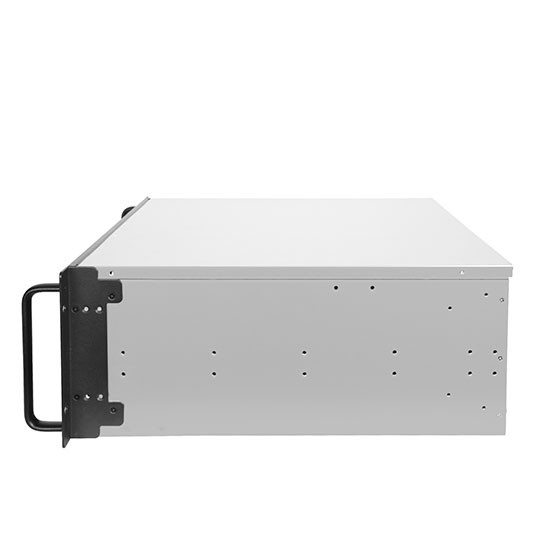

*** RM41-H08 has 2 rows of slide rail locking holes. If you wish to fix it in the positive U position of the rack, please lock the rails in the sliding rail locking holes of the lower row of RM41-H08
