Synology DS1823xs+ 8-Bay NAS Storage (AMD Ryzen V1780B Quad Core 3.35 GHz, 8GB D4 ECC, 2 x GbE LAN, 1 x 10GbE LAN)

Desktop-sized powerhouse
Over 3,100/2,600 MB/s seq. read/write,1 built-in 10GbE, and up to 160 TB raw storage2 before expansion.

Flexible configuration
Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed.

Versatile applications
Back up 300 endpoints, manage 75 IP cameras,4 or safely sync and share files between devices and sites.

Safe, dependable, and scalable
Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient.

Data integrity protection
The Btrfs file system helps prevent data corruption or loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards.

Efficient remote management
Monitor, manage, and replace drives and storage online in Synology DSM. Remotely reboot, reset, or view logs while the system is down thanks to out-of-band management (OOB).

Plug-and-play expansion
The DS1823xs+ can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.

Hardware Specifications

CPU

CPU Model : AMD Ryzen V1780B
CPU Quantity : 1
CPU Core    : 4
CPU Architecture : 64-bit
CPU Frequency : 3.35 (base) / 3.6 (turbo) GHz
Hardware Encryption Engine : Yes

Memory

System Memory : 8 GB DDR4 ECC SODIMM
Memory Module Pre-installed : 8 GB (8 GB x 1)
Total Memory Slots    : 2
Maximum Memory Capacity : 32 GB (16 GB x 2)

Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.

Storage

Drive Bays : 8
Maximum Drive Bays with Expansion Unit : 18 (DX517 x 2)
M.2 Drive Slots : 2 (NVMe)
Compatible Drive Type* (See all supported drives)
• 3.5″ SATA HDD
• 2.5″ SATA SSD
• M.2 2280 NVMe SSD
Hot Swappable Drive* : Yes

Notes
Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
The hot swappable drive feature is not supported by M.2 SSD slots.
“Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

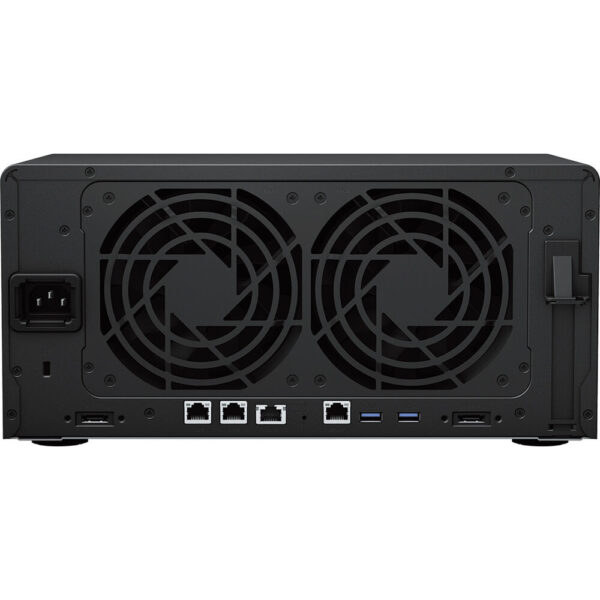

External Ports

RJ-45 1GbE LAN Port : 2
RJ-45 10GbE LAN Port : 1
Out-of-Band Management LAN Port : 1
USB 3.2 Gen 1 Port* : 3
Expansion Port : 2
Expansion Port Type : eSATA

Notes : This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.

PCIe
PCIe Expansion : 1 x Gen3 x8 slot (x4 link)

Appearance

Size (Height x Width x Depth) : 166 mm x 343 mm x 243 mm
Weight : 6.2 kg

Others

System Fan : 120 mm x 120 mm x 2 pcs
Fan Speed Mode
• Full-Speed Mode
• Cool Mode
• Quiet Mode

Easy Replacement System Fan : Yes
Brightness Adjustable Front LED Indicators : Yes
Power Recovery    : Yes
Noise Level* : 23.6 dB(A)
Scheduled Power On / Off : Yes
Wake on LAN / WAN    : Yes
Power Supply Unit / Adapter : 250 watts
AC Input Power Voltage : 100V to 240V AC
Power Frequency : 50/60 Hz, Single Phase
Power Consumption : 87.93 watts (Access) | 28.37 watts (HDD Hibernation)
British Thermal Unit : 300.23 BTU/hr (Access) | 96.87 BTU/hr (HDD Hibernation)

Notes
For more information on how power consumption is measured, refer to this article.
Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature : 0°C to 40°C (32°F to 104°F)
Storage Temperature    : -20°C to 60°C (-5°F to 140°F)
Relative Humidity : 5% to 95% RH

Warranty : 5 Years
