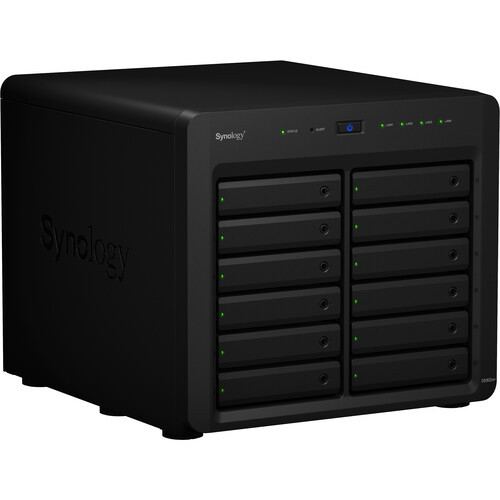

Synology DS3622XS 12-Bay Diskstation NAS Storage (Intel Xeon D-1531 6-Core 2.2 up to 2.7Ghz, 16GB DDR4 ECC , 2 x 10GbE, 2 x 1GbE)

Hardware Specifications

CPU
CPU Model : Intel Xeon D-1531
CPU Quantity : 1
CPU Core    : 6
CPU Architecture : 64-bit
CPU Frequency :     2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine : Yes

Memory
System Memory : 16 GB DDR4 ECC SODIMM
Memory Module Pre-installed : 16 GB (8 GB x 2)
Total Memory Slots : 4
Maximum Memory Capacity : 48 GB (8 GB x 2 + 16 GB x 2)

Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.

Storage
Drive Bays : 12
Maximum Drive Bays with Expansion Unit : 36 (DX1222 x 2)
Compatible Drive Type* (See all supported drives)
• 3.5″ SATA HDD
• 2.5″ SATA HDD
• 2.5″ SATA SSD
Hot Swappable Drive* : Yes

Notes
Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
“Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

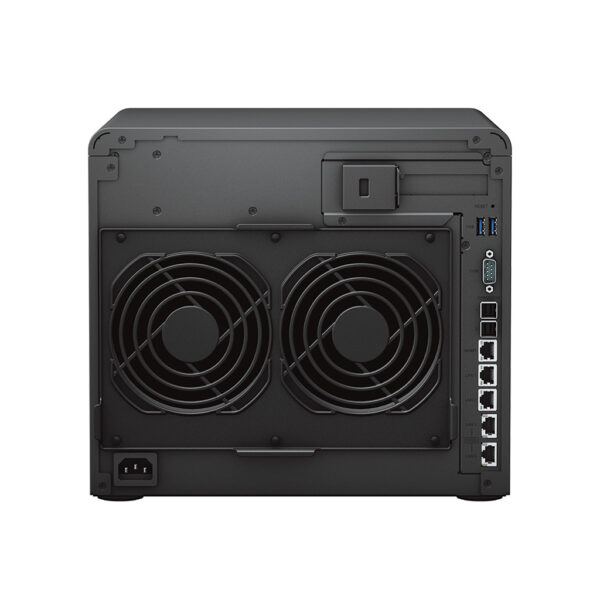

External Ports
RJ-45 1GbE LAN Port : 2
RJ-45 10GbE LAN Port : 2
Out-of-Band Management LAN Port :1
USB 3.2 Gen 1 Port*    : 2
Expansion Port : 2
Expansion Port Type    : Mini-SAS HD

Notes
This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe
PCIe Expansion : 1 x Gen3 x8 slot (x8 link)

Appearance
Size (Height x Width x Depth) :     270 mm x 300 mm x 340 mm
Weight :     9.8 kg

Others
System Fan : 120 mm x 120 mm x 2 pcs
Fan Speed Mode
• Full-Speed Mode
• Cool Mode
• Quiet Mode

Easy Replacement System Fan    : Yes
Power Recovery : Yes
Noise Level* : 25 dB(A)
Scheduled Power On / Off : Yes
Wake on LAN / WAN    : Yes
Power Supply Unit / Adapter : 550 watts
AC Input Power Voltage : 100V to 240V AC
Power Frequency : 50/60 Hz, Single Phase
Power Consumption : 94.42 watts (Access) | 54.33 watts (HDD Hibernation)
British Thermal Unit : 322.39 BTU/hr (Access) | 185.51 BTU/hr (HDD Hibernation)

Notes

Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature
Operating Temperature : 0°C to 40°C (32°F to 104°F)
Storage Temperature    : -20°C to 60°C (-5°F to 140°F)
Relative Humidity : 5% to 95% RH

Warranty : 5 Years
