Synology RS3621RPxs 12-Bay 2U Rackmount NAS Storage (Intel Xeon D-1531 6 Core Processor (Up to 2.7Ghz), 8GB ECC, 4 x GbE, Redundant Power)

SYNOLOGY RS3621RPxs 12-Bay 2U Rackmount NAS Storage

Safeguard your business assets

Compute – Intel Xeon D-1531 6-core 2.2 GHz
Throughput – 4,718 MB/s seq. read 189,098 4K random read IOPS
Expandability – Dual PCIe slots for 10GbE or NVMe cache
Scalability – Up to 36 drive bays with RX1217RP/RX1217

Reliability first
Service continuity is at the core of the RS3621RPxs design.

Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system.

Near-zero downtime
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.

Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.

Hardware Specification

CPU

CPU Model : Intel Xeon D-1531
CPU Quantity : 1
CPU Core    : 6
CPU Architecture : 64-bit
CPU Frequency : 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine : Yes

Memory

System Memory : 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed : 8 GB (8 GB x 1)
Total Memory Slots : 4
Maximum Memory Capacity : 64 GB (16 GB x 4)

Storage

Drive Bays : 12
Maximum Drive Bays with Expansion Unit : 36 (RX1217 x 2)
Compatible Drive Type* : 3.5" SATA HDD | 2.5" SATA SSD
Hot Swappable Drive : Yes

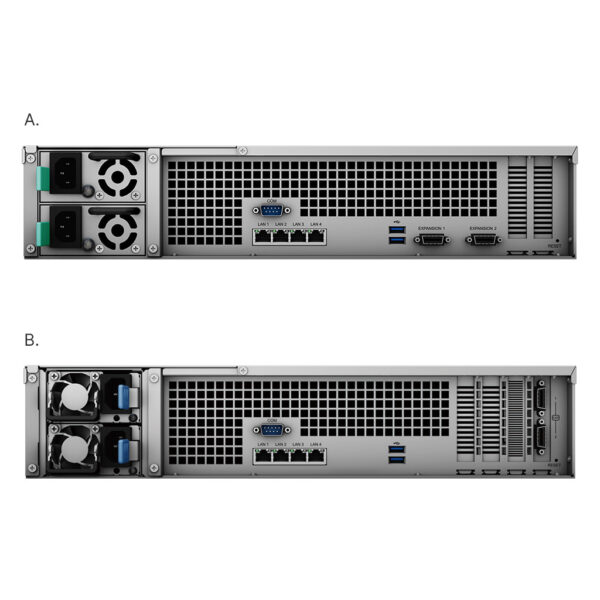

External Ports

RJ-45 1GbE LAN Port : 4
USB 3.2 Gen 1 Port* : 2
Expansion Port : 2
Expansion Port Type : Infiniband
Notes : The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe
PCIe Expansion : 2 x Gen3 x8 slots (x8 link)

Appearance

Form Factor (RU) : 2U
Size (Height x Width x Depth) : 88 mm x 482 mm x 724 mm
Weight : 14.5 kg
Rack Installation Support* : 4-post 19" rack (Synology Rail Kit – RKS-02)
Notes : The rail kit is sold separately

Others

System Fan : 80 mm x 80 mm x 4 pcs
Fan Speed Mode : Full-Speed Mode | Cool Mode | Quiet Mode
Easy Replacement System Fan : Yes
Power Recovery : Yes
Noise Level : 50.2 dB(A)
Scheduled Power On / Off : Yes
Wake on LAN / WAN : Yes
Power Supply Unit / Adapter :     500 watts / 550 watts*
Redundant Power Supply : Yes
AC Input Power Voltage : 100 V to 240 V AC
Power Frequency : 50/60 Hz, Single Phase
Power Consumption : 140.01 watts (Access) | 65.94 watts (HDD Hibernation)
British Thermal Unit : 477.43 BTU/hr (Access) | 224.86 BTU/hr (HDD Hibernation)

Temperature

Operating Temperature : 0°C to 35°C (32°F to 95°F)
Storage Temperature    : -20°C to 60°C (-5°F to 140°F)
Relative Humidity : 5% to 95% RH

Warranty  : 5 Years
