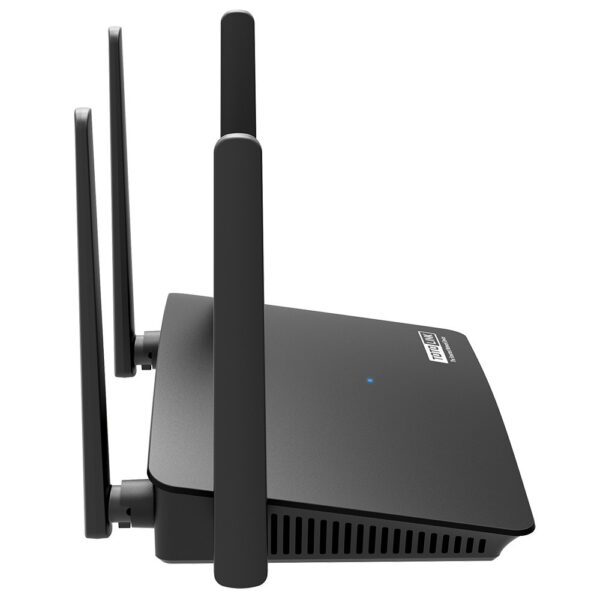

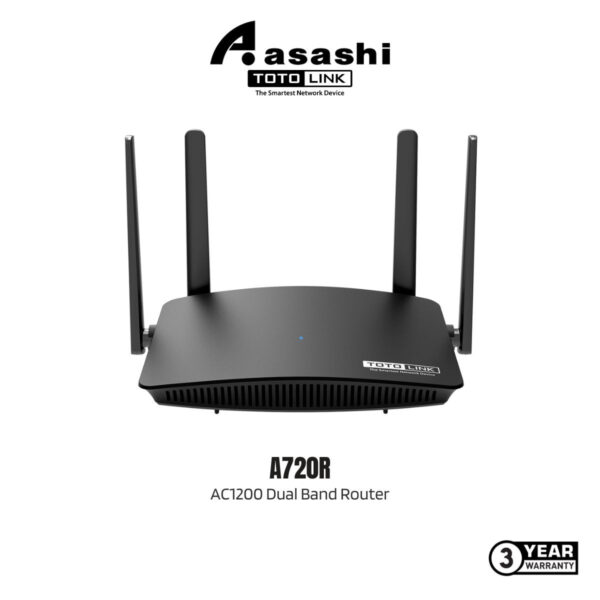

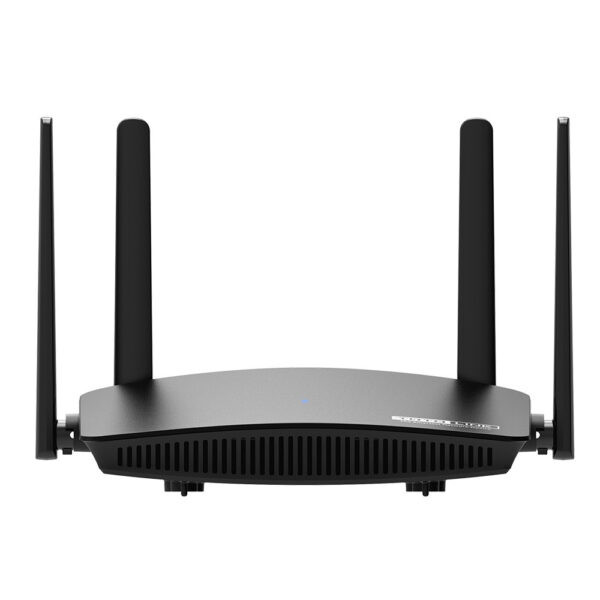

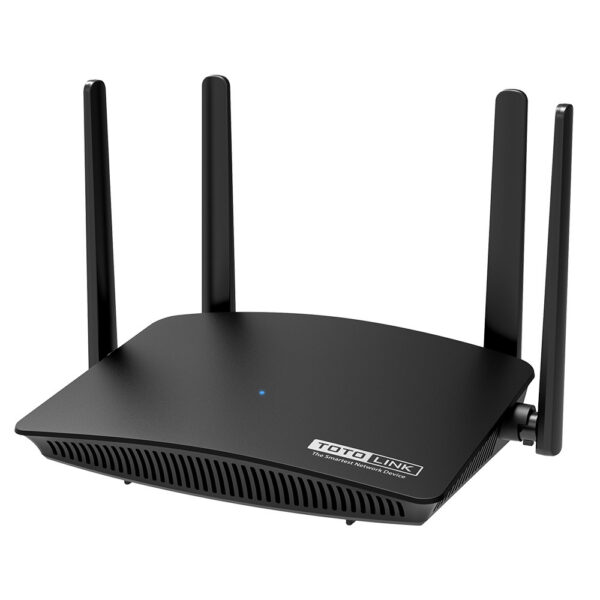

Totolink A720R AC1200 Dual Band Router

Totolink A720R AC1200 Dual Band Router

Features

 Comply with the IEEE 802.11ac Wave 2 Wi-Fi standard.

 1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz

 Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.

 Fast WAN/LAN ports offers a stable capability for data streaming via cable connection.

 Support DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.

 Support IPv6, the next generation of internet protocol, helping you to future-proof your network.

 Provides WPA/WPA2 mixed security.

 QoS function allows to change the bandwidth for different terminals via IP address.

 IPTV function allows to enjoy online movies at home.

 Support IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.

 Multiple SSIDs allows to create different SSIDs for different groups, better for Internet access management.

 Smart UI design or totolink router APP is easy for the users to finish the basic configuration with their cellphones.



Hardware

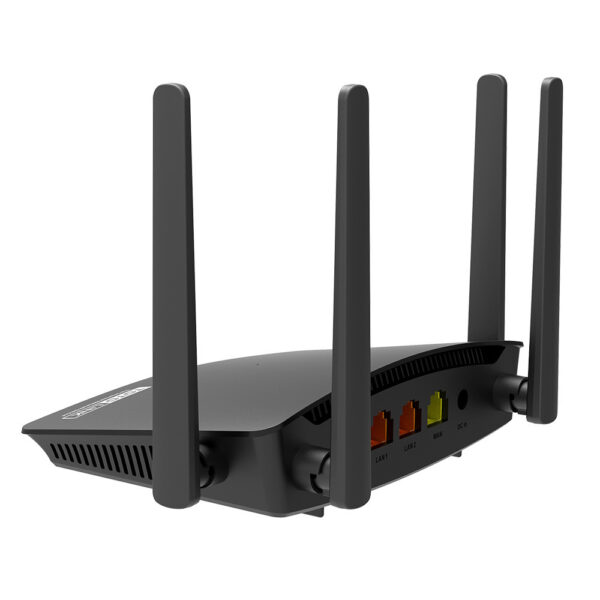

Interfaces

• 2 × 100Mbps LAN Ports

• 1 × 100Mbps WAN Port

Power Supply

• DC 9V / 0.8A

Button

• 1 × RST/WPS Button

LED Indicator

• 1 × SYS

Antennas

• 2 × Fixed 2.4GHz Antennas (5dBi)

• 2 × Fixed 5GHz Antennas (5dBi)

Dimensions (L × W × H)

• 142 × 95 × 41 mm

---

Wireless

Standards

• IEEE 802.11ac

• IEEE 802.11a

• IEEE 802.11b

• IEEE 802.11g

• IEEE 802.11n

RF Frequency

• 2.4GHz / 5GHz

Data Rates

• 2.4GHz: Up to 300 Mbps

• 5GHz: Up to 867 Mbps

EIRP

• 2.4GHz: < 20 dBm

• 5GHz: < 20 dBm

Wireless Security

• WPA / WPA2 Mixed

Reception Sensitivity

• 2.4GHz:

  • 11b 11M: -81 dBm @ 8% PER

  • 11g 54M: -68 dBm @ 10% PER

  • 11n HT20 MCS7: -65 dBm @ 10% PER

  • 11n HT40 MCS7: -62 dBm @ 10% PER

• 5GHz:

  • 11a 54M: -68 dBm @ 10% PER

  • 11n HT20 MCS7: -65 dBm @ 10% PER

  • 11n HT40 MCS7: -62 dBm @ 10% PER

  • 11ac VHT80 MCS9: -51 dBm @ 10% PER

---

Software

Operation Modes

• Gateway Mode

• Repeater Mode

• AP Mode

• WISP Mode

Home

• Quick Setup

• Basic Setup

• Advanced Setup

• QR Code

• LED Control

• Logout

• Reboot

Network

• WAN Settings

• LAN Settings

• DDNS Settings

• IPTV Settings

• IPv6 Settings

WAN Types

• Static IP

• DHCP

• PPPoE / Russia PPPoE

• PPTP / Russia PPTP

• L2TP / Russia L2TP

Wireless

• Basic Setup

• Guest Network (Multiple SSID)

• Wireless Schedule

• Access Control

• Advanced Setup

Parental Controls

• Internet Time Control (based on MAC)

QoS

• Upload/Download Speed Control on WAN

• Bandwidth Control by IP Address

Device Management

• Static Routes

• Routing Table

• IP/MAC Binding

Security

• MAC Filtering

• IP/Port Filtering

• URL Filtering

NAT Features

• Virtual Server (Port Forwarding)

• DMZ

• VPN Passthrough

Tools

• Firmware Upgrade

• Time Settings

• Remote Management

• Password Settings

• Reboot Schedule

• System Logs

---

Others

Package Contents

• A720R Wireless Router × 1

• Power Adapter × 1

• Ethernet Cable × 1

• Quick Installation Guide × 1

Environment

• Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)

• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

• Operating Humidity: 5% ~ 95% (non-condensing)

• Storage Humidity: 5% ~ 95% (non-condensing)
