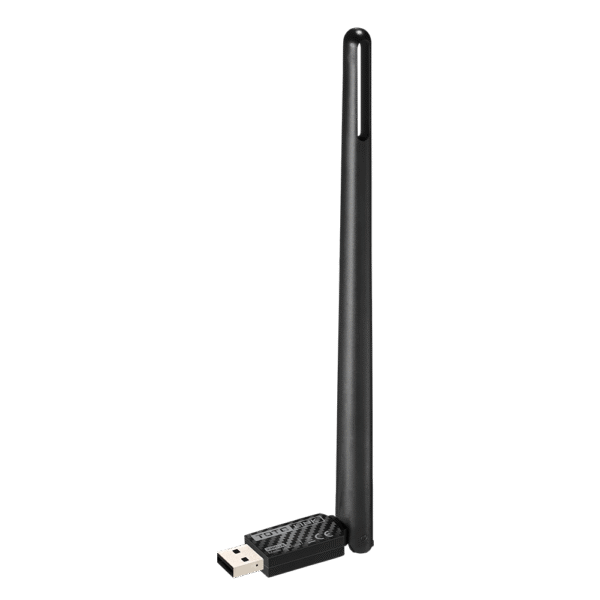

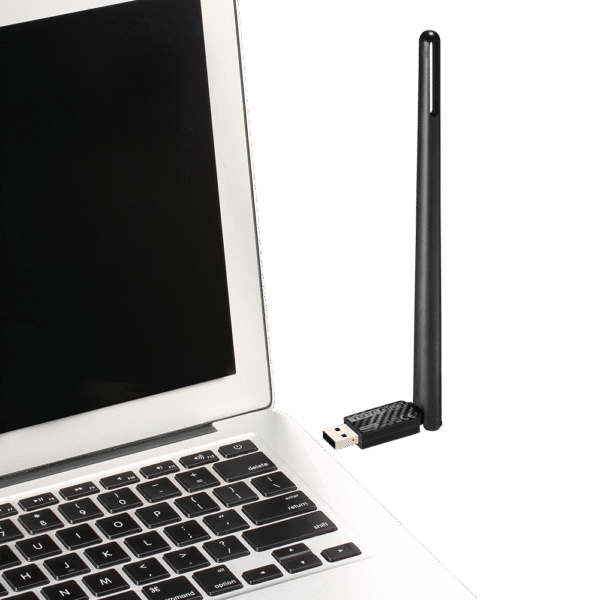

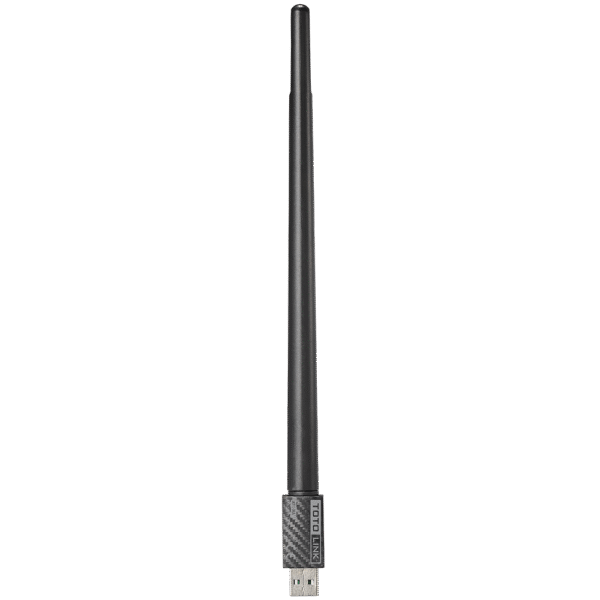

Totolink AX900UA Dual Band USB Adapter With External Omni-directional Antenna

Features

•  Comply with Wi-Fi 6（IEEE 802.11ax）standards.

•  Up to total 900Mbps wireless speed on simultaneous 2.4GHz(286Mbps) , 5GHz(600Mbps)

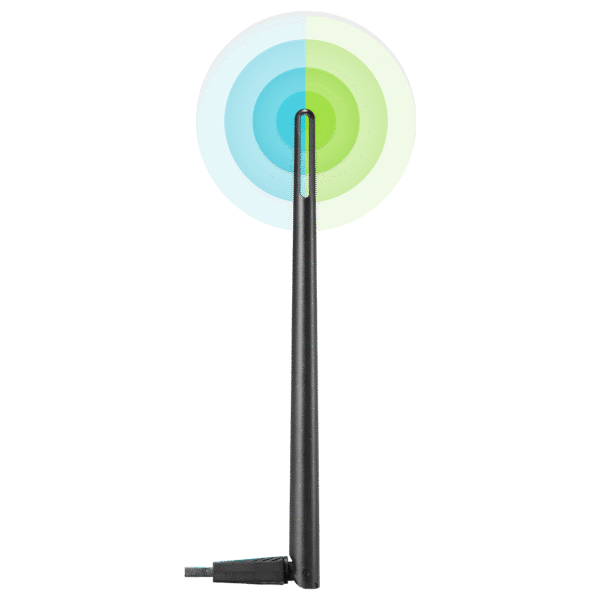

•  External omni-directional antenna improves the wireless reception sensitivity.

•  1024-QAM high data rate Modulation delivers powerful, continuous Wi-Fi to fully unlock the potential of Wi-Fi 6 router.

•  TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.

•  Support 64/128-bit WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK encryption standards.

•  Easy to install and configure.

•  Supports Windows 10 /11, Linux.

SPECIFICATION

Hardware

Interface / Button

• 1 × USB 2.0

LED Indicator

• 1 × Wireless (ACT) Blue

Antenna

• 1 × External Dual-Band Antenna (non-removable)

Dimensions (L × W × H)

• 58 × 18 × 18 mm (excluding antenna)

Wireless

Standards

• IEEE 802.11ax

• IEEE 802.11ac

• IEEE 802.11n

• IEEE 802.11g

• IEEE 802.11b

• IEEE 802.11a

RF Frequency

• 2.4 – 2.4835 GHz

• 5.18 – 5.825 GHz

Data Rate

• 2.4GHz: Up to 287 Mbps

• 5GHz: Up to 600 Mbps

EIRP

• < 20 dBm

Wireless Security

• 64/128-bit WEP

• WPA / WPA2 / WPA3

• WPA-PSK / WPA2-PSK (TKIP / AES)

Reception Sensitivity

• 2.4GHz

  • 11b 11M: -81 dBm @ 8% PER

  • 11g 54M: -68 dBm @ 10% PER

  • 11n HT20 MCS7: -65 dBm @ 10% PER

  • 11n HT40 MCS7: -62 dBm @ 10% PER

  • 11ax HE-SU40 MCS11: -48 dBm @ 10% PER

• 5GHz

  • 11a 54M: -68 dBm @ 10% PER

  • 11n HT20 MCS7: -65 dBm @ 10% PER

  • 11n HT40 MCS7: -62 dBm @ 10% PER

  • 11ac VHT80 MCS9: -51 dBm @ 10% PER

  • 11ax HE-SU40 MCS11: -48 dBm @ 10% PER

  • 11ax HE-SU80 MCS11: -45 dBm @ 10% PER

Others

Package Contents

• X900UA USB Adapter ×1

• Quick Installation Guide ×1

System Requirements

• Windows 10 / 11 (32/64-bit)

• Linux

Environment

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 5% to 90% (non-condensing)

• Storage Humidity: 5% to 90% (non-condensing)
