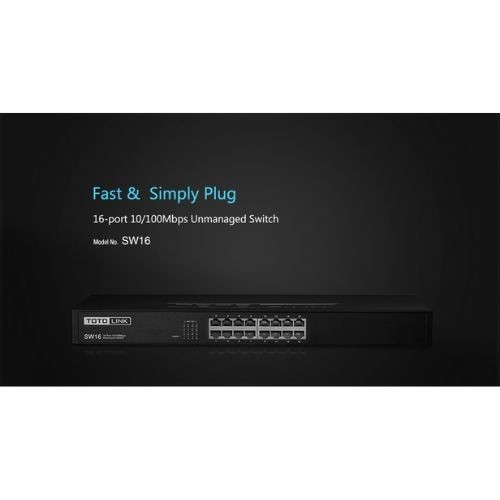

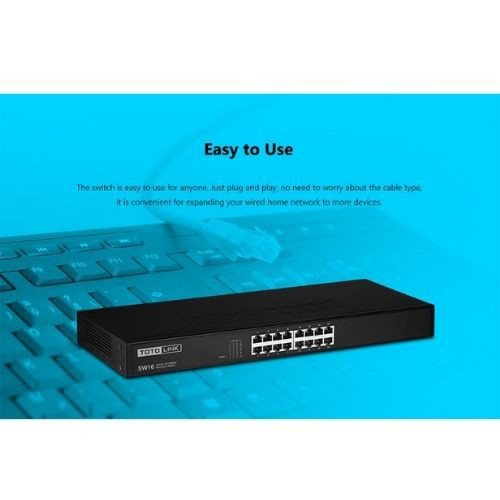

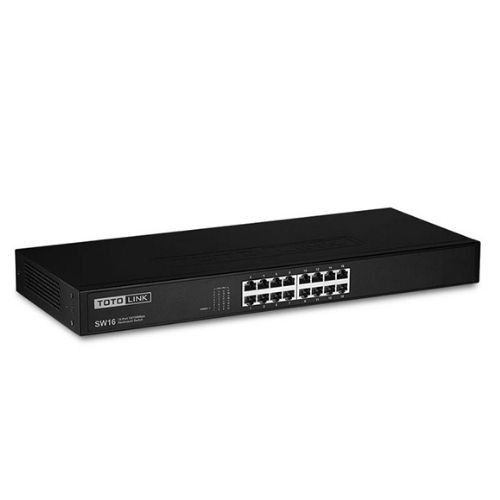

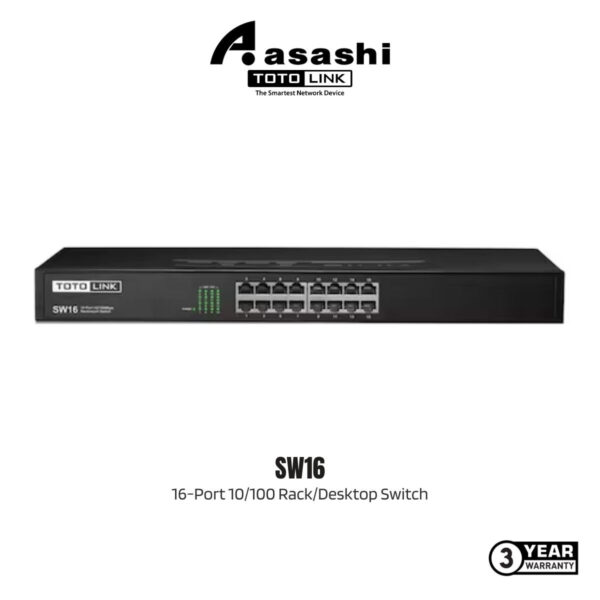

TOTOLINK SW16 16-Ports 10/100Mbps Desktop Switch ( Rack Mount )

•  16 10/100Mbps auto-negotiated RJ45 ports.

•  Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

•  8K entry MAC address table and automatic address learning.

•  Auto-MDI/MDIX eliminates the need for crossover cables.

•  Store-and-Forward switching scheme.

•  Performs non-blocking full wired speed.

•  Plug and Play.

•  Standard 19-inch rackmount steel case.

General

Standards

• IEEE 802.3

• IEEE 802.3u

• IEEE 802.3x

Interface

• 16 × 10/100Mbps Auto-Negotiation RJ-45 Ports (Auto MDI/MDIX)

Power Supply

• AC 100V~240V, 50/60Hz

LED Indicators

• 1 × Power

• 16 × LAN

Dimensions (L × W × H)

• 440 × 180 × 44 mm

MAC Address Learning

• Auto-learning and auto-aging

MAC Address Table

• 8K entries

Backplane Bandwidth

• 3.2 Gbps

Transfer Method

• Store-and-Forward

Network Media

• 10BASE-T: UTP Cat 3 or above

• 100BASE-TX: UTP Cat 5, 5e or above

Others

Package Contents

• SW16 Rackmount Switch ×1

• Power Cable ×1

• Rackmount Kit ×1

• Quick Installation Guide ×1

Environment

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 10% to 90% (non-condensing)

• Storage Humidity: 5% to 90% (non-condensing)
