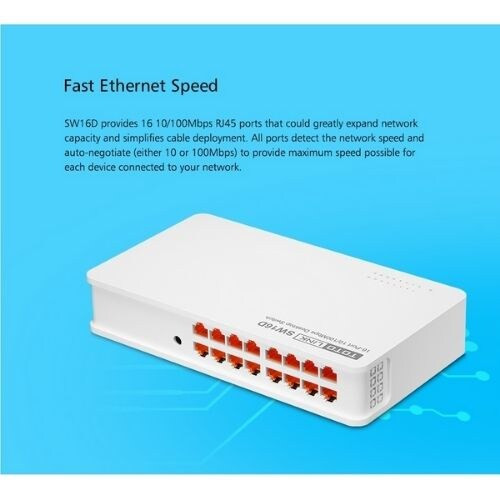

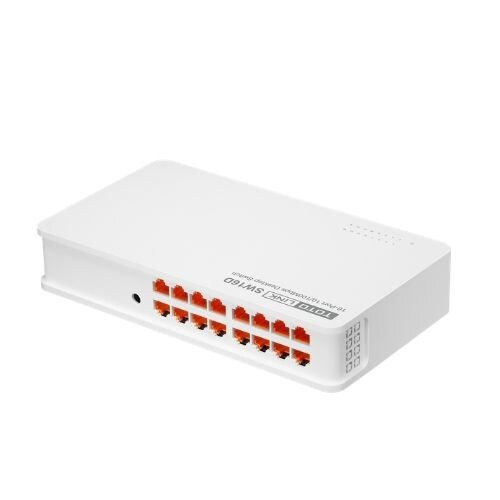

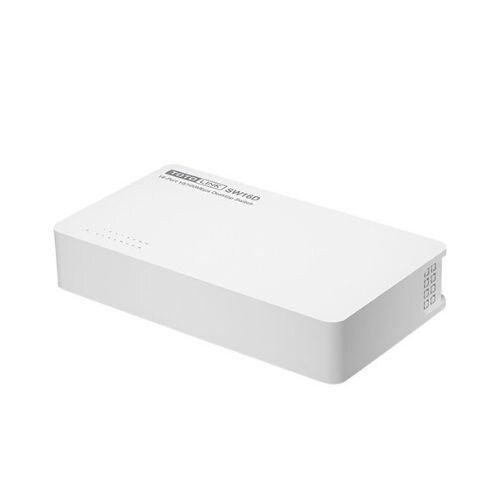

TOTOLINK SW16D 16-Ports 10/100Mbps Desktop Switch (Plastic Cover )

SW16D is a Fast Ethernet Switch that designed for large home, SMB (Small and Medium Business) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, the desktop and plastic design with wall-mounting holes makes the device an ideal solution for both home and office use.

Features

• 16 10/100Mbps auto-negotiated RJ45 ports.
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
• 4K entry MAC address table and automatic address learning.
• Auto-MDI/MDIX eliminates the need for crossover cables.
• Store- and-Forward Switching scheme.
• Performs non-blocking full wired speed.
• Supports IGMP Snooping.
• Desktop and wall-mounting design.

General

Standards

• IEEE 802.3

• IEEE 802.3u

• IEEE 802.3x

Interface

• 16 × 10/100Mbps Auto-Negotiation RJ-45 Ports (Auto Negotiation / Auto MDI/MDIX)

Power Supply

• DC 9V / 800mA

LED Indicators

• 1 × Power

• Link/Act (1–16)

Dimensions (L × W × H)

• 227 × 127 × 45 mm (8.9 × 5.0 × 1.8 in)

MAC Address Learning

• Auto-learning and auto-aging

MAC Address Table

• 8K entries

Backplane Bandwidth

• 4.8 Gbps

Network Media

• 10BASE-T: UTP Cat 3, 4, 5

• 100BASE-TX: UTP Cat 5, 5e or above

Frame Filtering Rate

• 10Mbps: 14,880 pps

• 100Mbps: 148,800 pps

Transfer Method

• Store-and-Forward

Others

Package Contents

• SW16D Desktop Switch ×1

• Power Adapter ×1

• Quick Installation Guide ×1

Environment

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 10% to 90% (non-condensing)

• Storage Humidity: 5% to 95% (non-condensing)
