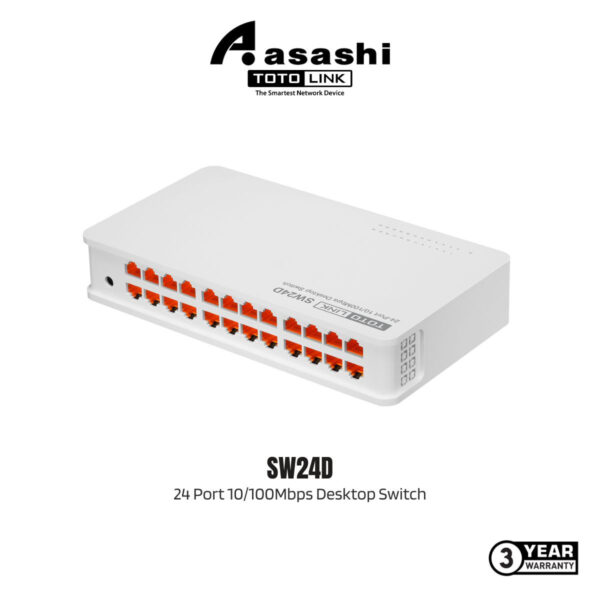

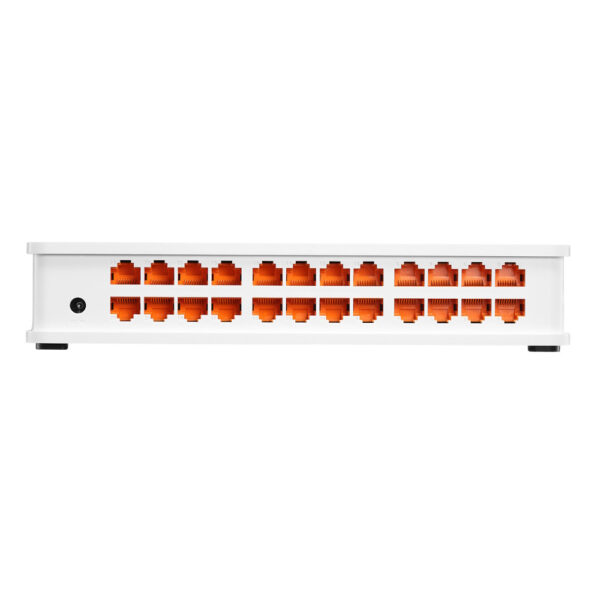

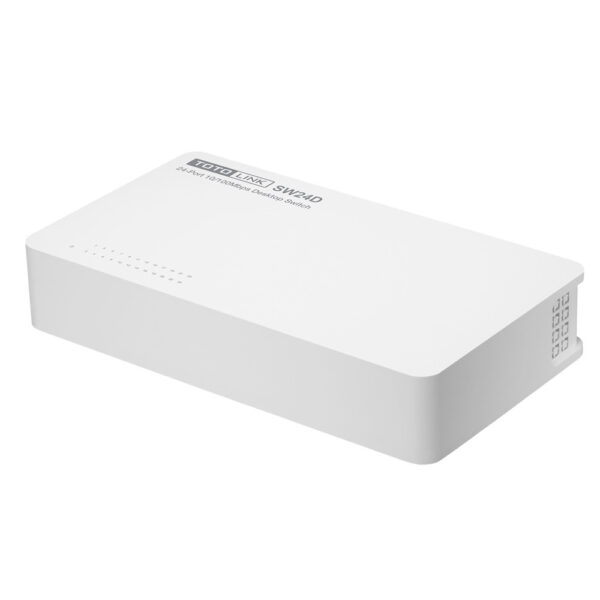

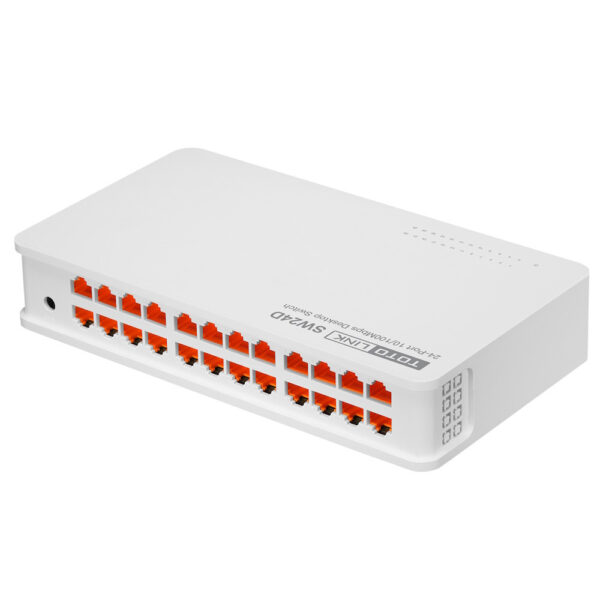

Totolink SW24D 24 Port 10/100Mbps Desktop Switch

Totolink SW24D 24 Port 10/100Mbps Desktop Switch

Features

 24 10/100Mbps auto-negotiated RJ45 ports.

 Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

 8K entry MAC address table and automatic address learning.

 Auto-MDI/MDIX eliminates the need for crossover cables.

 Store- and-Forward Switching scheme.

 Performs non-blocking full wired speed.

 Desktop and wall-mounting design.

SW24D Desktop Switch – Product Specifications

General

Standards

• IEEE 802.3

• IEEE 802.3u

• IEEE 802.3x

Interface

• 24 × 10/100Mbps Auto-Negotiation RJ-45 Ports (Auto MDI/MDIX)

Power Supply

• DC 9V / 800mA

LED Indicators

• 1 × Power

• 24 × Link/Act (1~24)

Dimensions (L × W × H)

• 227 × 127 × 45 mm (8.9 × 5.0 × 1.8 in.)

Performance

MAC Address Learning

• Auto-learning

• Auto-aging

MAC Address Table

• 8K entries

Backplane Bandwidth

• 4.8 Gbps

Frame Filtering & Forwarding Rates

• 10Mbps: 14,880 pps

• 100Mbps: 148,800 pps

Transfer Method

• Store-and-Forward

Network Media

• 10BASE-T: UTP Cat 3, 4, 5 cable

• 100BASE-TX: UTP Cat 5, 5e or higher

Others

Package Contents

• SW24D Desktop Switch

• Power Adapter

• Quick Installation Guide

Environment

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

• Operating Humidity: 10% ~ 90% (non-condensing)

• Storage Humidity: 5% ~ 95% (non-condensing)
