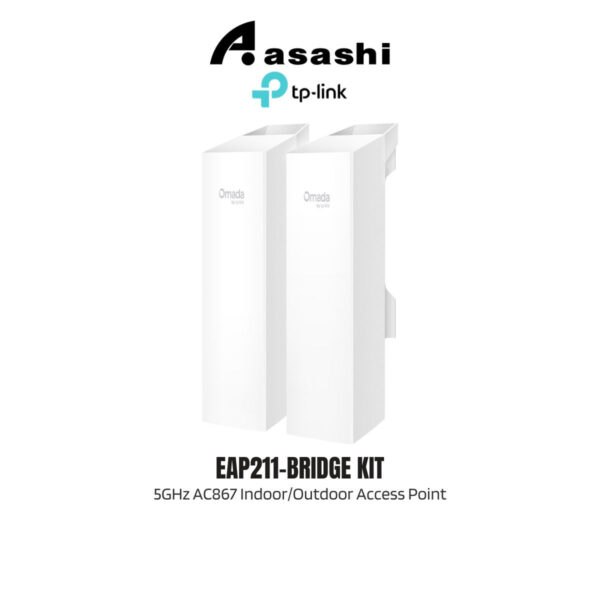

TP-Link EAP211-Bridge Kit 5GHz AC867 Indoor/Outdoor Access Point

👁 Currently 25 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge

Up to 0.62 mi (1 km) Transmission Distance: Ideal for long-range wireless transmission.*
Plug-and-Play Setup: Supports auto-pairing and LED signal indicator for efficient deployment and role switch for flexible AP modes switching.
Flexible Power Supply: Supports 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system) for versatile deployment.
3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch.△
Efficient Management: Supports Standalone mode or Omada SDN mode for remote centralized management via Web UI or App.†
Ideal for Outdoor Scenarios: IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability, with a reliable operating range of -40 °C to +70 °C.**

HARDWARE FEATURES
Interface	3x Gigabit Ethernet Ports
Button	Reset
DIP Switch	Role Switch
Power Supply	12V DC / 802.3af PoE / 24V Passive PoE
Max. Power Consumption	11.5W
Dimensions ( W x D x H )	8.8 × 3.1 × 2.4 × in (224 × 79 × 60 mm)
Antenna	Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 10.0 dBi Horizontal:60°, Vertical: 30°
Weatherproof Enclosure	IP65
Mounting	Pole and wall mounting ( Pole accessories included)

WIRELESS FEATURES
Coverage	1000m(3280ft)^*
Wireless Standards	IEEE 802.11 a/n/ac
Frequency	5 GHz
Signal Rate	5 GHz: Up to 867 Mbps^§
Wireless Functions	• MU-MIMO: 5G 2×2 MU-MIMO DL • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast
Wireless Security	• VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption
Transmission Power	• CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz, band3, EIRP) • FCC: <23dBm (5 GHz, band1) <25dBm (5 GHz, band4)

Management Features
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada App
Cloud Access	Yes. Require the use of Omada Controllers.
Email Alerts	Yes
LED ON/OFF Control	Yes
SNMP	Yes
SSH	Yes
Web-based Management	Yes
Zero-Touch Provisioning	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Content	• EAP211-Bridge KIT • Installation Guide • Mounting Kit
Lightning Protection	• Air discharge: ±8kV • Contact discharge: ±4kV • Common mode 10/700: ±6kV
Environment	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
