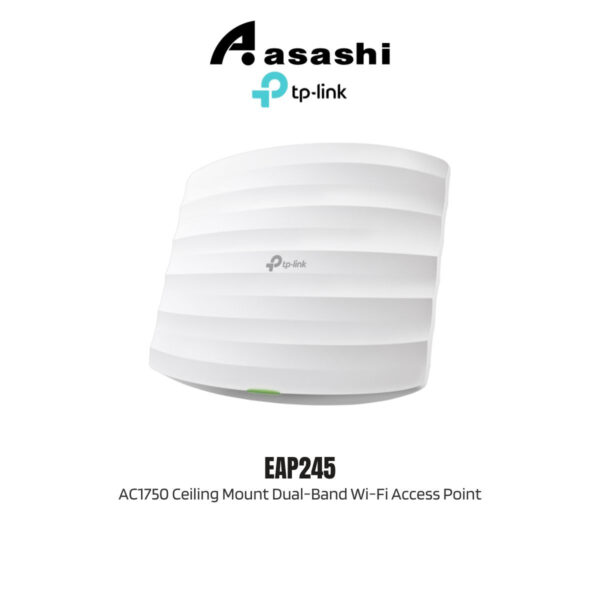

TP-Link EAP245 (5-pack) AC1750 Ceiling Mount Dual-Band Wi-Fi Access Point

👁 Currently 13 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

EAP245

AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point

Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
Free cloud centralized management and Omada app for ultra convenience and easy management
Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
Load balance ensures large numbers of users have smooth network experiences in high density business networks
Supports management VLAN for an enhanced network management

HARDWARE FEATURES
Interface	Gigabit Ethernet (RJ-45) Port *2 (Support IEEE802.3af PoE and Passive PoE )
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3af/A PoE 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption	12.3 W
Dimensions ( W x D x H )	8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type	Internal Omni 2.4GHz: 3* 3.5dBi 5GHz: 3*4dBi
Mounting	Ceiling /Wall Mounting (Kits included)
Hardware Watch Dog	Yes

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/g/b/a
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz:Up to 1300Mbps 2.4GHz:Up to 450Mbps
Wireless Functions	• Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming* • Omada Mesh* • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, • WPA-PSK / WPA2-PSK
Transmission Power	CE： ≤20dBm(2.4GHz) ≤23dBm(5GHz) FCC: ≤24dBm(2.4GHz) ≤24dBm(5GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	Omada Software Controller OC200
APP support	Yes
Cloud Access	Yes (Through Omada Software Controller or OC200)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	Yes
System Logging Local/Remote Syslog	Local/Remote Syslog
Telnet	Yes
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification	CE, FCC, RoHS
Package Contents	AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245 Gigabit Passive PoE Adapter Power Cord Mounting Kits Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
