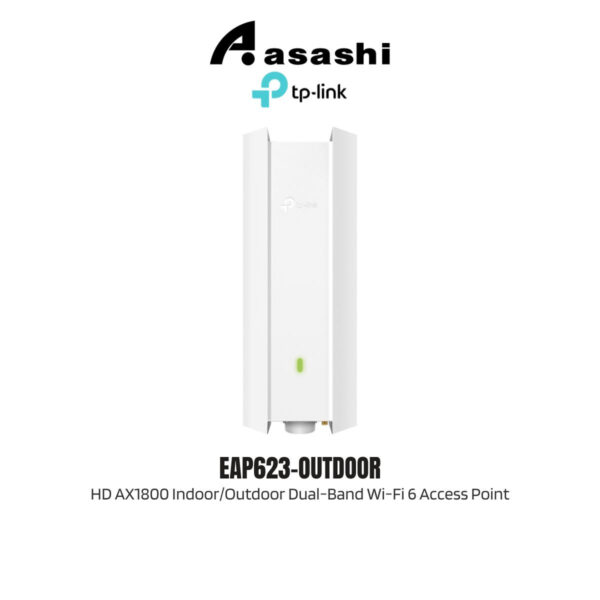

TP-Link EAP623-Outdoor HD AX1800 Indoor/Outdoor Dual-Band Wi-Fi 6 Access Point

👁 Currently 29 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

EAP623-Outdoor HD

AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.^*
Supports WiFi 6 technologies, such as 1024-QAM and OFDMA, etc.
High-density connectivity up to 1,000+ clients.^**
Long-range coverage with the high-power amplifier and smart antennas.
IP67 weatherproof enclosure for various outdoor environments.
Advanced Functions: Centralized management, Omada mesh, and seamless roaming.
PoE+ Powered: Supports 802.3at PoE (adapter not included).

HARDWARE FEATURES
Interface	1x Gigabit Ethernet Port
Button	Reset
Power Supply	• 802.3at PoE • 48V Passive PoE Note: PoE adapter is not included.
Dimensions ( W x D x H )	4.2 × 2.2 × 11.1 in (106.5 × 57 × 281 mm)
Antenna	2× Internal Dual-Band Omni Antennas • 2.4 GHz: 4.0 dBi; • 5 GHz: 5.0 dBi
Weatherproof Enclosure	IP67
Mounting	Pole/Wall Mounting (Kits included)

WIRELESS FEATURES
Concurrent Clients	1,020+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	5 GHz, and 2.4 GHz
Signal Rate	• 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions	• Mesh^△ • Seamless Roaming(802.11k/v/r)^△ • Automatic Channel Assignment • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP
Wireless Security	• VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication^△ • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • 802.1X Support
Transmission Power	• CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); • FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)

Management Features
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Content	• EAP623-Outdoor HD • Installation Guide • Mounting Kit • Waterproof Kit
Environment	• Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
