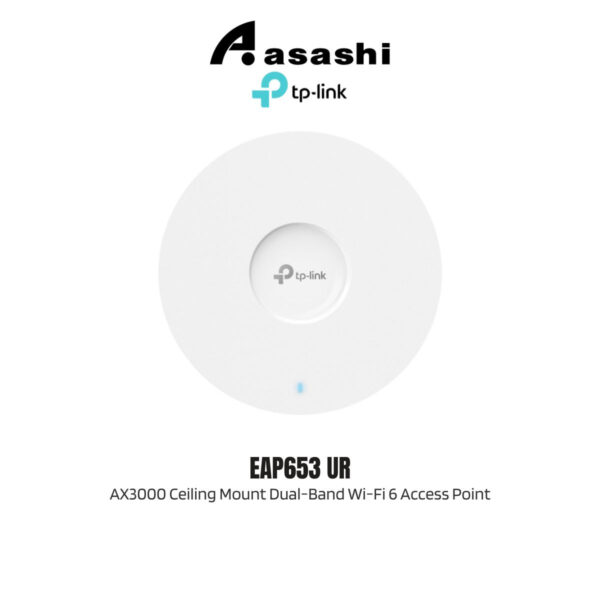

Name: TP-Link EAP653 UR AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point - A-sashi Technology
SKU: EAP653 UR
Price: 699.00 MYR
Availability: OutOfStock

TP-Link EAP653 UR AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point

👁 Currently 21 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz
Ultra-range wireless coverage by more antennas with higher transmit power
Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
Advanced Features: Omada Mesh, Seamless Roaming, etc
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility
Integrates with the Omada SDN platform for centralized management

HARDWARE FEATURES
Interface	1× Gigabit PoE+ Port
Button	Reset
Power Supply	• 802.3at PoE • 12V DC / 1.5 A (Power Adapter IS NOT included) • 48V Passive PoE
Max. Power Consumption	• EU: 14.2 W • US: 15.5 W
Dimensions ( W x D x H )	6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna	Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 5 dBi
Mounting	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting

WIRELESS FEATURES
Coverage	185 ㎡ (2000 ft²)^***
Concurrent Clients	250+^**
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 2402 Mbps^† • 2.4 GHz: Up to 574 Mbps^†
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO(2G: 22 MU-MIMO DL/UL; 5G:22 MU-MIMO DL/UL) • HE160 (160 MHz Bandwidth)^‡ • Seamless Roaming(802.11k/v/r)^§ • Omada Mesh^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <29 dBm(5 GHz, Band3, EIRP) • FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz)

Management Features
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification	CE, FCC, RoHS
Package Content	• EAP653 UR • Ceiling/Wall Mounting Kit • Installation Guide Note: DC adapter is not included in the package, and is sold separately.
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
