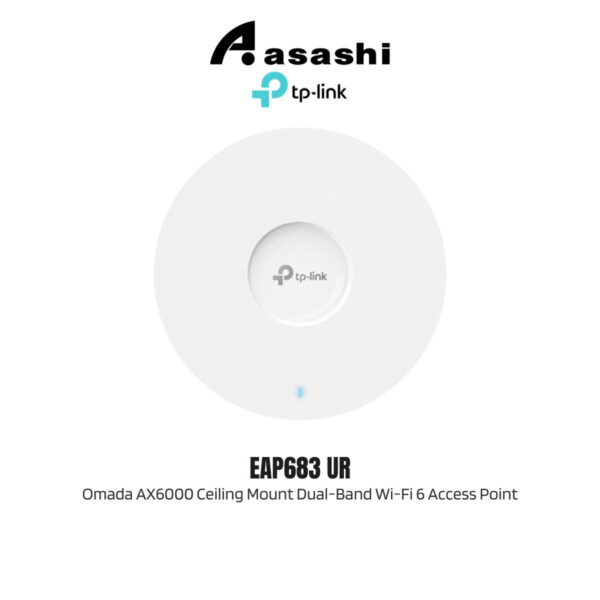

TP-Link EAP683 UR Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
TP-Link EAP683 UR Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point

TP-Link EAP683 UR Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point

Original price was: RM999.00.Current price is: RM899.00.

👁 Currently 25 people are viewing this product.

Out of stock

SKU: EAP683 UR Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

EAP683 UR

AX6000 Ceiling Mount WiFi 6 Access Point

  • Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
  • Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
  • Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
  • Integrates with the Omada SDN platform for centralized management.
  • Advanced Features: Omada Mesh, Seamless Roaming, and more.
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).



HARDWARE FEATURES
Interface 1× 2.5 Gigabit PoE+ Port
Button Reset
Power Supply • 802.3at PoE
• 12 V / 2 A DC

Note：Power adapter is not included.
Max. Power Consumption • EU: 20.43W
• US: 23.69W
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi
Bluetooth V5.2
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 185㎡(2000ft²)***
Concurrent Clients 510+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 1148 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO (4*4 MU-MIMO DL&UL)
• MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO]
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming(802.11k/v/r) §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE: <20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)

• FCC: <26 dBm (2.4 GHz)
<26 dBm (5 GHz)
Management Features
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification CE,FCC,RoHS
Package Content • EAP683 UR
• Ceiling/Wall Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing


Weight 1.50 kg
Dimensions 25.00 × 25.00 × 10.00 cm
