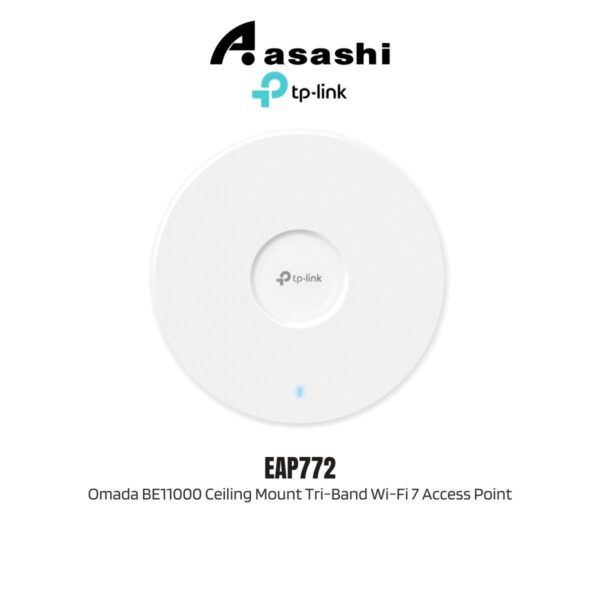

TP-Link EAP772 Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

👁 Currently 12 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

BE11000 Tri-Band Wi-Fi 7 (5765 Mbps on 6 GHz + 4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
A clear 6 GHz band brings cleaner and wider band resources.
1× 2.5G Port unlocks the full potential of Wi-Fi 7.
320 MHz bandwidth enables many more simultaneous transmissions.
Multi-Link Operation and Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management, mesh, and AI roaming.

HARDWARE FEATURES
Interface	1× 2.5G Ethernet Port
Button	Reset
Power Supply	802.3at PoE or 12V/2.5A DC
Max. Power Consumption	• 25.44 W (For PoE); • 22.57 W (For DC)
Dimensions ( W x D x H )	8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna	• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi
Bluetooth	1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required.
Mounting	Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES
Coverage	140㎡(1500 ft²)^§
Concurrent Clients	380+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Signal Rate	688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)^†
Wireless Functions	• MLO^‡ • 4K-QAM^‡ • Seamless Roaming(802.11k/v/r) • MU-MIMO^‡ • EHT320^‡ • Mesh^△ • BSS Coloring^‡ • OFDMA^‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Security	• Captive Portal Authentication^△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	< 25dBm （2.4GHz） < 25dBm （5GHz） < 23dBm （6GHz）

Management Features
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes

OTHERS
Certification	CE, FCC, RoHS, IC
Package Content	• EAP772 • Installation Guide • Ceiling/Wall Mounting Kit Note: Power Adapter is NOT included.
Environment	• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;
