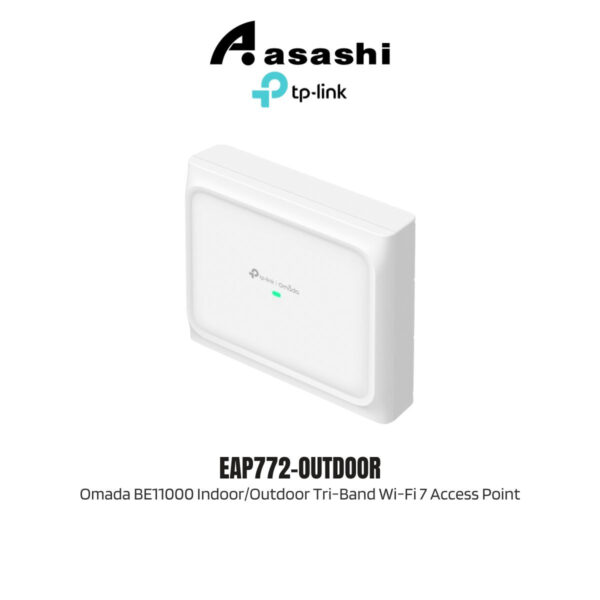

TP-Link EAP772-Outdoor Omada BE11000 Indoor/Outdoor Tri-Band Wi-Fi 7 Access Point
TP-Link EAP772-Outdoor Omada BE11000 Indoor/Outdoor Tri-Band Wi-Fi 7 Access Point

TP-Link EAP772-Outdoor Omada BE11000 Indoor/Outdoor Tri-Band Wi-Fi 7 Access Point

Original price was: RM1,999.00.Current price is: RM1,899.00.

👁 Currently 18 people are viewing this product.

Out of stock

SKU: EAP772-Outdoor Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

EAP772-Outdoor

Tri-Band Omnidirectional Long-Range BE11000 Indoor/Outdoor WiFi 7 Access Point

•Tri-Band Six-Stream WiFi 7: Up to 11 Gbps.

•6 GHz Band Unlocked by AFC: AFC enable 6 GHz band outdoor uses.

•True Tri-Band Omnidirectional Coverage: Transmission distances are up to 200m (2.4 GHz), 300m (5 GHz), and 250m (6 GHz)*

•Professional Hardware Design: Industry-Leading IP68-Rated, 1× 2.5G PoE+ port, 2.4 GHz dual-polarized antennas.

•Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup

•Advanced Features: Centralized management, mesh, and seamless roaming.





HARDWARE FEATURES
Interface 1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
Max. Power Consumption 23W (for PoE)
Dimensions ( W x D x H ) 9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
Antenna • 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 6 dBi
• 6 GHz: 2× 6 dBi
GNSS L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals
Receive sensitivity: -164dBm (tracking)
GPS antennas: Integrated 3dBi omnidirectional antennas
Bluetooth BLE 5.2
Weatherproof Enclosure IP68
Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage • 2.4 GHz: 200m*
• 5 GHz: 300m*
• 6 GHz: 250m*
Concurrent Clients 380+**
Wireless Standards IEEE 802.11be/ax/ac/n/g/b/a
Frequency 2.4 GHz, 5 GHz, 6 GHz
Signal Rate 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)†
Wireless Functions • 4k-QAM
• OFDMA
• Multiple SSIDs: 24 (8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• MLO
• 320MHz
• Omada Mesh§
• Seamless Roaming(802.11k/v/r)§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Static IP/Dynamic lP
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Transmission Power • CE:
Indoor Mode: < 20 dBm (2.4 GHz, EIRP);, < 23 dBm (5 GHz, band 1 & band 2, ElRP), < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP)
Outdoor Mode: < 20 dBm (2.4 GHz, EIRP); < 28 dBm (5 GHz, band 3, EIRP)
• FCC:
Indoor Mode: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz)
Outdoor Mode:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz)
Management Features
Omada App Yes
Centralized Management Yes, through
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes, through
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification CE, FCC, RoHS
Package Content • Access Point EAP772-Outdoor
• Waterproof Kit
• Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Weight 1.50 kg
Dimensions 25.00 × 25.00 × 10.00 cm
