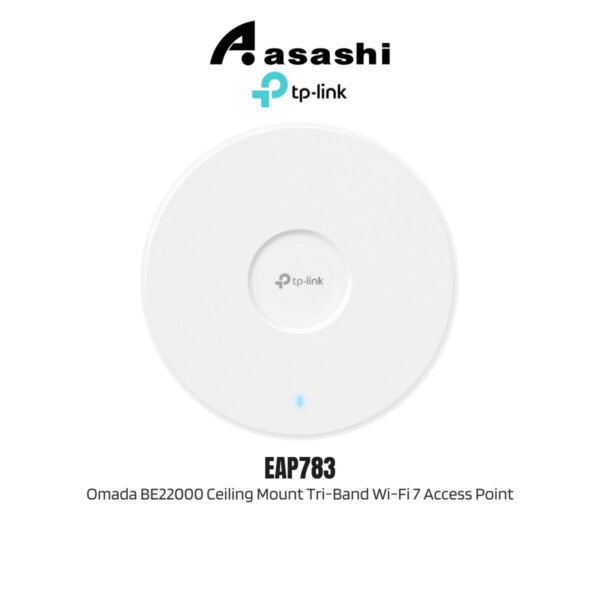

TP-Link EAP783 Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

👁 Currently 31 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

BE22000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 8640 Mbps on 5 GHz + 1376 Mbps on 2.4 GHz).
A clear 6 GHz band brings cleaner and wider band resources.
2× 10G ports unlock the full potential of Wi-Fi 7.
320 MHz bandwidth enables many more simultaneous transmissions.
Multi-Link Operation and Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management, mesh, and Seamless roaming

HARDWARE FEATURES
Interface	2× 10G Ethernet Ports (20G Aggregation Speed^†)
Button	Reset
Power Supply	• 802.3bt PoE++ • 12V DC Note：Power adapter is not included.
Max. Power Consumption	39W
Dimensions ( W x D x H )	11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm)
Antenna	Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5.5 dBi • 6 GHz: 4× 5 dBi
Bluetooth	V5.2
Mounting	Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES
Coverage	200㎡ (2150 ft²) ^§
Concurrent Clients	760+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Signal Rate	• 6 GHz: Up to 11520 Mbps • 5 GHz: Up to 8640 Mbps • 2.4 GHz: Up to 1376 Mbps
Wireless Functions	• MLO • 4K-QAM • MU-MIMO (4×4 MU-MIMO DL/UL) • HE320 (320 MHz Bandwidth)^‡ • Mesh^§ • Seamless Roaming(802.11k/v/r)^△ • Automatic Channel Selection and Power Adjustment^* • BSS Coloring • UL/DL OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP
Wireless Security	• PPSK • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication^△ • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Transmission Power	• FCC: <28 dBm (2.4 GHz) <28 dBm (5G band 1&band 4) <24 dBm (5G band 2&band 3) <28 dBm (6 GHz)

Management Features
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes

GENERAL
Weight	Net Weight:1384.6g

OTHERS
Certification	CE, FCC, RoHS, IC
Package Content	• EAP783 • Installation Guide • Ceiling/Wall Mounting Kits
Environment	• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
