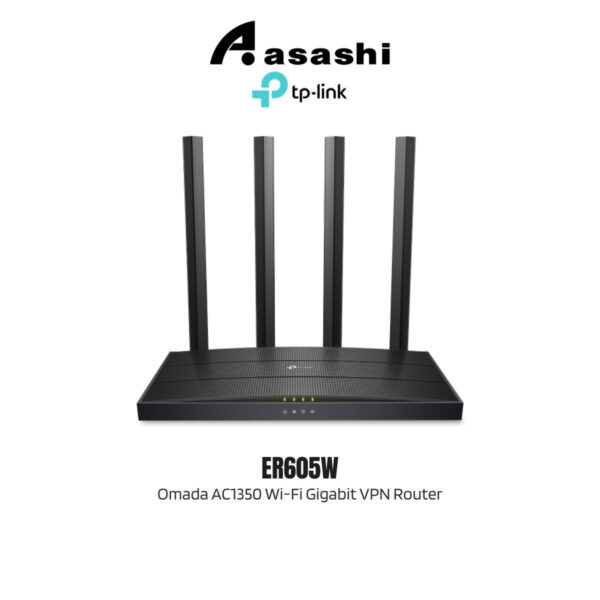

TP-Link ER605W Omada AC1350 Wi-Fi Gigabit VPN Router
TP-Link ER605W Omada AC1350 Wi-Fi Gigabit VPN Router

TP-Link ER605W Omada AC1350 Wi-Fi Gigabit VPN Router

Original price was: RM309.00.Current price is: RM249.00.

👁 Currently 16 people are viewing this product.

Out of stock

SKU: ER605W Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

ER605W

Omada AC1350 Gigabit Wi-Fi Gateway

  • AC1350 Dual-Band WiFi: Up to 1317 Mbps Wi-Fi.*
  • 5× Gigabit Ethernet Ports: Provide high-speed wired connectivity.
  • Centralized Management: Cloud access and the Omada app for easy management.
  • Powerful Traffic Control: Load Balancing on up to 3× WAN ports.
  • Boosted Coverage: 4× external antennas extend and concentrate the Wi-Fi signals.
  • Abundant Security Features: DoS defense,IP/MAC/URL filtering, and more protect your network and data.


SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • Web Group Filtering†
• URL Filtering
• Web Security†
ARP Inspection • Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Interface • 1× Gigabit WAN Port
• 2× Gigabit WAN/LAN Ports
• 2× Gigabit LAN Ports
Button Reset Button
Power Supply 12V DC / 1A Power Adapter
Wi-Fi Frequency & Signal Rate • 2.4 GHz: 450 Mbps
• 5 GHz: 867 Mbps
Flash 16 MB NORFLASH
DRAM 128 MB DDR2
LED Power, SYS, 2.4G, 5G, WAN (1000/100/10M Link/Act), WAN/LAN (1000/100/10M Link/Act)
Dimensions ( W x D x H ) 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm)
Antenna • 2.4 GHz: 2x 5 dBi non-detachable antennas and 1 built-in antenna
• 5 GHz: 2x 5 dBi non-detachable antennas
Mounting Desktop/Wall-mounting
Max. Power Consumption • EU: 10W
• US: 12W
PERFORMANCE
Concurrent Session 20,000
New Sessions /Second 1,300
NAT (Static IP) 941.2 Mbps / 937.6Mbps
NAT(DHCP) 933.5 Mbps / 933.6 Mbps
NAT(PPPoE) 919.2 Mbps / 931.9 Mbps
NAT (L2TP) 333.2 Mbps / 387.4 Mbps
NAT (PPTP) 304.2 Mbps / 473.2 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 19.7Mbps
• ESP-SHA256-AES256: 17.5Mbps
• ESP-SHA384-AES256: 13.9Mbps
• ESP-SHA512-AES256: 13.9Mbps
OpenVPN 18.0 Mbps
L2TP VPN Throughput • Unencrypted: 307.7 Mbps
• Encrypted: 9.8 Mbps
PPTP VPN Throughput • Unencrypted: 319.6 Mbps
• Encrypted: 41.9 Mbps
66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81,274 pps / 81,275 pps
WIRELESS FEATURES
Advanced Features • Multiple SSIDs: 8 in total (4 per radio)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Selection Algorithm
• Transmit Power Control: Adjust transmit Power on dBm
• Seamless Roaming
• Beamforming
• Rate Limit: Based on SSID/Client
• Load Balance
• Airtime Fairness
• Band Steering
• RADIUS Accounting
• Wireless Encryption: WPA/WPA2 Personal, WPA/WPA2 Enterprise
Guest Network Support
BASIC FUNCTIONS
WAN Connection Type • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
MAC Clone Modify WAN Address
DHCP • DHCP Server
• DHCPv6 PD Server†
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Advanced Routing • Static Routing
• Policy Routing
Bandwidth Control IP-Based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection
NAT • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-Based Session Limit
VPN
IPsec VPN • 3 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (3)△
• 3 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (3)△
• 3 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (3)△
• 18 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password§
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP (not supported in Standalone Mode)
Management Features
Omada App Yes.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• Diagnostics (Ping & Traceroute)†
• NTP Synchronize†
• Port Mirroring
• Syslog Support
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Content • ER605W
• Power Adapter
• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing


Weight 1.00 kg
Dimensions 25.00 × 15.00 × 10.00 cm
