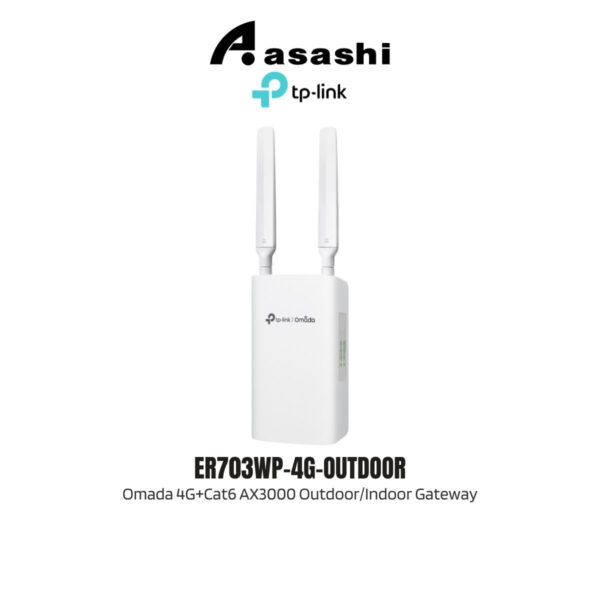

Tp-Link ER703WP-4G-Outdoor Omada 4G+Cat6 AX3000 Outdoor/Indoor Gateway
Tp-Link ER703WP-4G-Outdoor Omada 4G+Cat6 AX3000 Outdoor/Indoor Gateway

Tp-Link ER703WP-4G-Outdoor Omada 4G+Cat6 AX3000 Outdoor/Indoor Gateway

Original price was: RM1,399.00.Current price is: RM1,299.00.

👁 Currently 16 people are viewing this product.

Out of stock

SKU: ER703WP-4G-Outdoor Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

  • 4G+ Cat6 up to 300 Mbps*
  • AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz†#
  • 3 × Gigabit WAN/LAN Ports (2 × PoE Out, 1 × PoE In)
  • 1 × Nano SIM Card Slot
  • 802.3at/bt PoE or 12V/2A DC Power Supply
  • 4G and Ethernet WAN Auto Backup with Load Balancing
  • IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
  • Centralized Management
  • IP55 Weatherproofing



4G
Network Type LTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9
00/800/700/1450 MHz)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)
Carrier Aggregation:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
SIM Type 1× Nano SIM Card
Frequency • Downlink: 300 Mbps;
• Uplink: 50 Mbps
SECURITY
DPI Application control via DPI / Updated app library
Access Control Source/Destination IP Based Access Control
Filtering • Web Group Filtering
• URL Filtering
• Web Security
ARP Inspection • Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Interface • 3 Gigabit WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 802.3at/bt PoE; 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
Flash 256 MB NAND
DRAM 512 MB DDR4
LED 4G Signal, WLAN, WAN/LAN, SYS

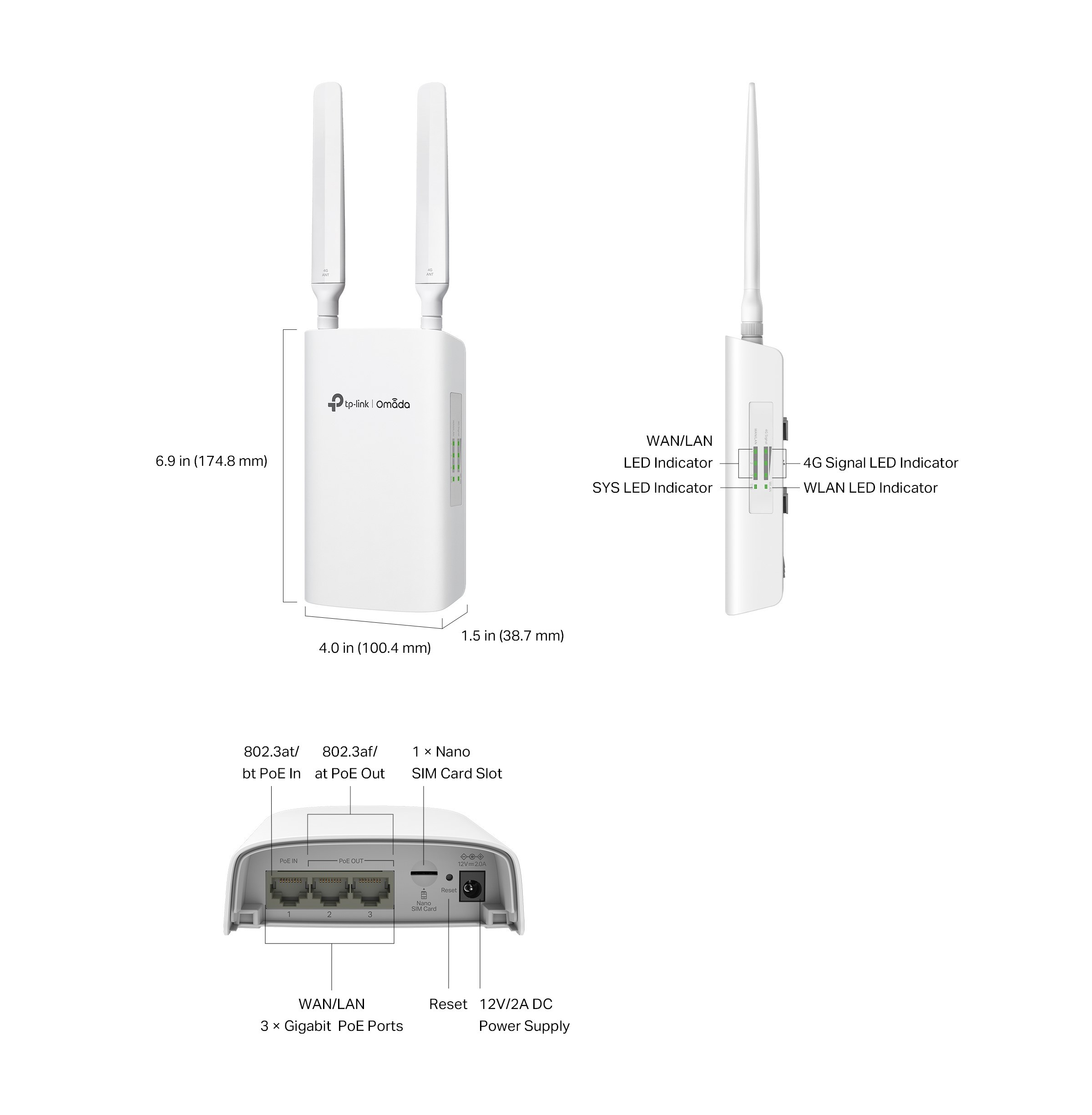

Dimensions ( W x D x H ) 6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included)
Antenna • Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in
antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting Pole/Wall-Mounting
Max. Power Consumption POE:62.9W max @ 220V/50Hz 25℃
DC: 16.6W max @ 220V/50Hz 25℃
PERFORMANCE
DPI Throughput • TCP: 1131 Mbps
• UDP: 974 Mbps
GRE • Unencrypted: 450.3Mbps
• Encrypted: 277.6Mbps
WireGuard VPN 462.8Mbps
Concurrent Session 120,000
New Sessions /Second 3,800
NAT (Static IP) 945.9Mbps / 950.2Mbps
NAT(DHCP) 947.3Mbps / 949.4Mbps
NAT(PPPoE) 916.9Mbps / 946.3Mbps
NAT (L2TP) 878.9Mbps / 778.9Mbps
NAT (PPTP) 852.2Mbps / 775.9Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 568.3Mbps
• ESP-SHA256-AES256: 559.8Mbps
• ESP-SHA384-AES256: 565.6Mbps
• ESP-SHA512-AES256: 550.0 Mbps
OpenVPN 85.1Mbps
L2TP VPN Throughput • Unencrypted: 858.7Mbps
• Encrypted: 467.0Mbps
PPTP VPN Throughput • Unencrypted: 876.2Mbps
• Encrypted: 182.6Mbps
SSL VPN Throughput 86.6Mbps
66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,489 pps
1,518 Byte Packet forwarding rate 81275 pps / 81275 pps
WIRELESS FEATURES
Advanced Features • Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio)
Guest Network Support
BASIC FUNCTIONS
WAN Connection Type • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
MAC Clone Modify WAN Address
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
SMS Receive / Send SMS
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Access Control IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
• RIP
• OSPF
Bandwidth Control IP-Based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection
NAT • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-Based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10)
• 50 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10)
• 50 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
WireGuard VPN • 20 Tunnels
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• LDAP
Management Features
Omada App Yes.
Centralized Management • Omada Cloud Essentials
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Content • ER703WP-4G-Outdoor
• Mounting Kits
• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 5% to 95% non-condensing
• Storage Humidity: 5% to 90% non-condensing
Weight 0.50 kg
Dimensions 20.00 × 20.00 × 20.00 cm
