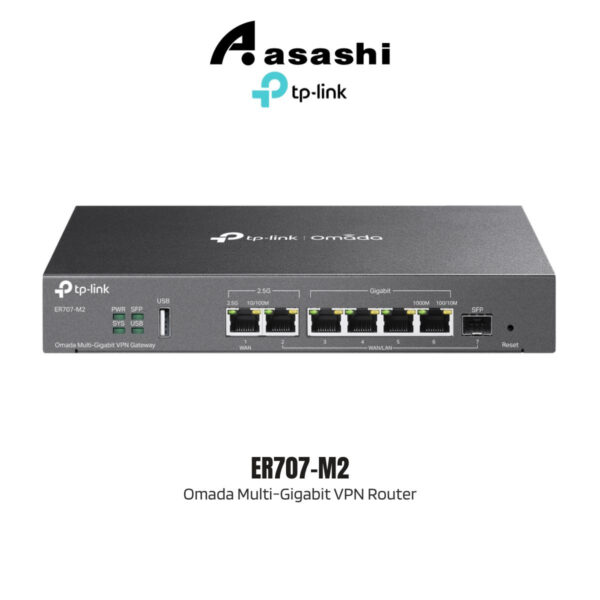

TP-Link ER707-M2 Omada Multi-Gigabit VPN Router
TP-Link ER707-M2 Omada Multi-Gigabit VPN Router

TP-Link ER707-M2 Omada Multi-Gigabit VPN Router

Original price was: RM1,299.00.Current price is: RM1,199.00.

👁 Currently 23 people are viewing this product.

Out of stock

SKU: ER707-M2 Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

Omada Multi-Gigabit VPN Router

  • Two 2.5G Ports: 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
  • Up to 6 WAN Ports: 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
  • Highly Secure VPN: Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
  • Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.
  • Centralized Management: Cloud access and Omada app provide the utmost in management convenience.
  • Extensive Security Features: Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.

SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • WEB Group Filtering§
• URL Filtering
• Web Security§
ARP Inspection • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q， IEEE802.3bz
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
Interface • 1× 2.5G RJ45 WAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 1× Gigabit SFP WAN/LAN Port
• 4× Gigabit RJ45 WAN/LAN Ports
• 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity Fanless
Button Reset Button
Power Supply 12V/1.5A Adapter
PoE Budget –
Flash 128MB NAND
DRAM 1 GB DDR4
LED PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting Desktop/Wall Mounting
Max. Power Consumption 14.2 W (with USB2.0 connected)
7.1 W (without USB2.0 connected)
PERFORMANCE
IPS Throughput TCP: 208 Mbps;
UDP: 161 Mbps
DPI Throughput TCP: 1823 Mbps;
UDP: 1272 Mbps
WireGuard VPN Throughput 343Mbps
Concurrent Session 500,000
New Sessions /Second 6,000
NAT (Static IP) 2365.17 Mbps / 2364.45 Mbps
NAT(DHCP) 2364.45 Mbps / 2366.04 Mbps
NAT(PPPoE) 2347.14 Mbps / 2348.29 Mbps
NAT (L2TP) 1308.86 Mbps / 974.10 Mbps
NAT (PPTP) 1236.27 Mbps / 1280.99 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 673.3 Mbps
• ESP-SHA256-AES256: 650.2 Mbps
• ESP-SHA384-AES256: 629.3 Mbps
• ESP-SHA512-AES256: 633.8 Mbps
L2TP VPN Throughput • Unencrypted: 1243.7 Mbps
• Encrypted: 561.0 Mbps
SSL VPN Throughput 132.24 Mbps
66 Byte Packet Forwarding Rate 1832.69 Mbps / 1741.84 Mbps
1,518 Byte Packet forwarding rate 2461.18 Mbps / 2457.32 Mbps
BASIC FUNCTIONS
WAN Connection Type • IPv4_Static IP
• IPv4_Dynamic IP
• IPv4_PPPOE
• IPv4_L2TP
• IPv4_PPTP
• IPv6_PPP
• IPv6_DHCPv6
• IPv6_Static IP
• IPv6_6in4
• IPv6_Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Advanced Routing • Static Routing
• Policy Routing
• RIP (only in Standalone Mode)
• OSPF (only in Standalone Mode)
Bandwidth Control • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
NAT • One-to-One NAT§
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-based Session Limit
VPN
IPsec VPN • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Clients (12)
• 60 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Clients (12)
• 60 Tunnels (Shared with PPTP)
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Clients (6)
• 66 OpenVPN Tunnels*
WireGuard VPN • 20 Tunnels
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*
• Hotspot (Local User/Voucher* /SMS*/Radius*)
• External Radius Server
• External Portal Server*
• LDAP
Management Features
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)
OTHERS
Certification CE, FCC, RoHS
Package Content • ER707-M2
• Power Adapter
• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing
Weight 1.50 kg
Dimensions 30.00 × 20.00 × 10.00 cm
