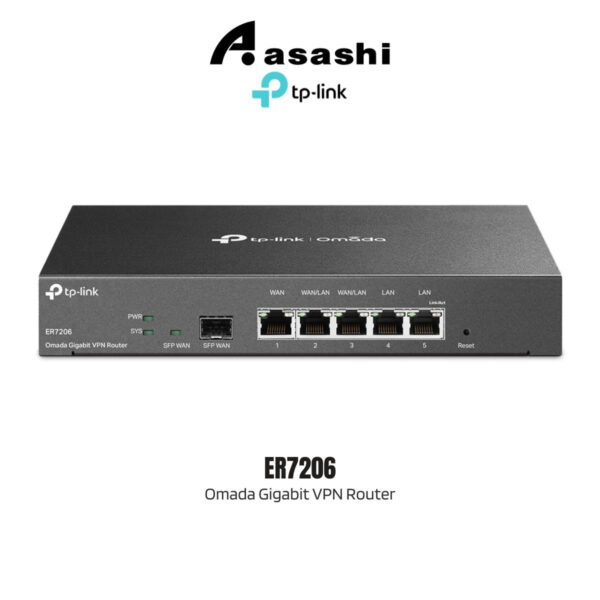

Omada Gigabit VPN Router

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN^*, 50× L2TP, and 50× PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.

SECURITY
Access Control	Source/Destination IP Based Access Control
Filtering	• WEB Group Filtering^§ • URL Filtering • Web Security^§
ARP Inspection	• Sending GARP Packets^§ • ARP Scanning^§ • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP，WireGuard VPN
Interface	• 1 Gigabit SFP WAN Port • 1 Gigabit WAN port • 2 Gigabit LAN/WAN ports • 2 Gigabit LAN ports
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity	Fanless
Button	Reset Button
Power Supply	100–240 VAC, 50/60 Hz
PoE Budget	–
Flash	4MB SPI + 128 MB NAND
DRAM	512MB
LED	PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection	4 kV surge protection
Enclosure	Steel
Mounting	Desktop
Max. Power Consumption	8.95W

PERFORMANCE
IPS Throughput	TCP: 200 Mbps; UDP: 150 Mbps
DPI Throughput	TCP: 931 Mbps; UDP: 902 Mbps
WireGuard VPN	177.2 Mbps
Concurrent Session	150,000
New Sessions /Second	4,500
NAT (Static IP)	930.5 Mbps / 937.3 Mbps
NAT(DHCP)	932.5 Mbps / 936.7 Mbps
NAT(PPPoE)	913.2 Mbps / 937.4 Mbps
NAT (L2TP)	876.4 Mbps / 917.7 Mbps
NAT (PPTP)	859.7 Mbps / 915.5 Mbps
64 Byte Packet Forwarding Rate	–
IPsec VPN Throughput	AES128: 217.0 Mbps
OpenVPN	34.2 Mbps
L2TP VPN Throughput	• Unencrypted: 1461.5 Mbps • Encrypted: 248.5 Mbps
PPTP VPN Throughput	• Unencrypted: 1645.5 Mbps • Encrypted: 139.6 Mbps
SSL VPN Throughput	–
66 Byte Packet Forwarding Rate	268,895 pps / 268,895 pps
1,518 Byte Packet forwarding rate	81,274 pps / 81,274 pps

BASIC FUNCTIONS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN/LAN MAC Address^†
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6	StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Access Control	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing • RIP^§ • OSPF^§
Bandwidth Control	• IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-based Session Limit

VPN
SSL VPN	–
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)^‡ • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)^‡ • 50 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10)^‡ • 50 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	• 20 Tunnels

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password* • Hotspot(Local User /Voucher^/ SMS^/Radius^) • External Radius Sever • External Portal Sever^ • LDAP^§

Management Features
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)^§ • NTP Synchronize^§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Content	• ER7206(TL-ER7206) • Power Cord • Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

Weight	1.50 kg
Dimensions	30.00 × 20.00 × 10.00 cm
