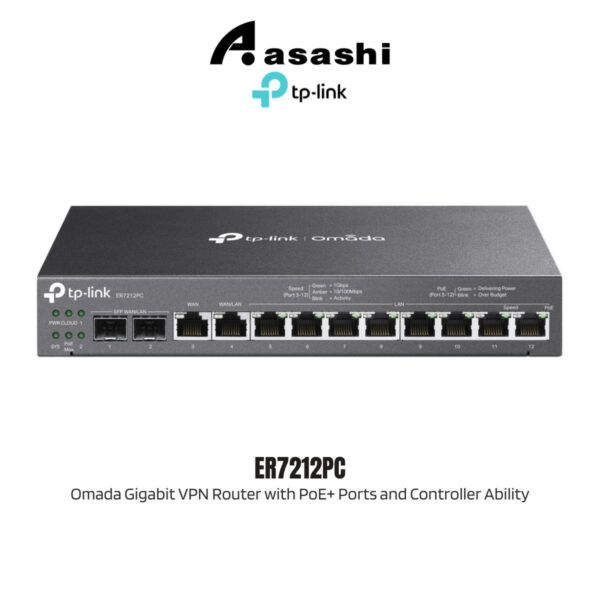

TP-Link ER7212PC Omada Gigabit VPN Router with PoE+ Ports and Controller Ability
TP-Link ER7212PC Omada Gigabit VPN Router with PoE+ Ports and Controller Ability

TP-Link ER7212PC Omada Gigabit VPN Router with PoE+ Ports and Controller Ability

Original price was: RM1,099.00.Current price is: RM999.00.

👁 Currently 19 people are viewing this product.

Out of stock

SKU: ER7212PC Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

ER7212PC

Omada 3-in-1 Gigabit VPN Router

  • 3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether.
  • Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
  • Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
  • 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
  • Centralized Management: Cloud access and the Omada app offer convenience and easy management.
  • Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
  • Easy Installation: Fanless and compact design for desktop and wall mounting.


SECURITY
Access Control Source/Destination IP Based Access Control
Filtering URL Filtering
ARP Inspection –
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface • 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity Fanless
Button Reset Button
Power Supply 53.5VDC/2.43A Adapter
PoE Budget 8 ports PoE+ output, 110 W PoE Budget
Flash 8Mb Nor + 4 GB EMMC
DRAM 1 GB DDR3
LED PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting Desktop/Wall-mount
Max Power Consumption • 133.2W with PoE Max
• 13.88W without PoE
PERFORMANCE
Concurrent Session 24,980
New Sessions /Second 1,900
NAT (Static IP) 935.5 Mbps / 942.1 Mbps
NAT(DHCP) 940.2 Mbps / 941.7 Mbps
NAT(PPPoE) 913.1 Mbps / 935.2 Mbps
NAT (L2TP) 545.0 Mbps / 912.7 Mbps
NAT (PPTP) 523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput AES256: 168.5 Mbps
OpenVPN 34 Mbps
L2TP VPN Throughput • Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps
PPTP VPN Throughput • Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate 154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate 81,193 pps / 81,193 pps
BASIC FUNCTIONS
WAN Connection Type • Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP
MAC Clone Modify WAN MAC Address
DHCP • DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 support
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
Bandwidth Control IP/Port-based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup
• Online Detection
NAT • Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-based Session Limit
VPN
SSL VPN –
IPsec VPN • 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10)
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10)
• 16 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
MANAGEMENT
Omada App Yes
Centralized Management Yes.
Cloud Access Yes
Service Dynamic DNS (Dyndns, No-IP)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support
Zero-Touch Provisioning –
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management up to 2 Switches, and 10 EAPs
OTHERS
Certification CE, FCC, RoHS
Package Contents • ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
Weight 1.50 kg
Dimensions 30.00 × 20.00 × 10.00 cm
