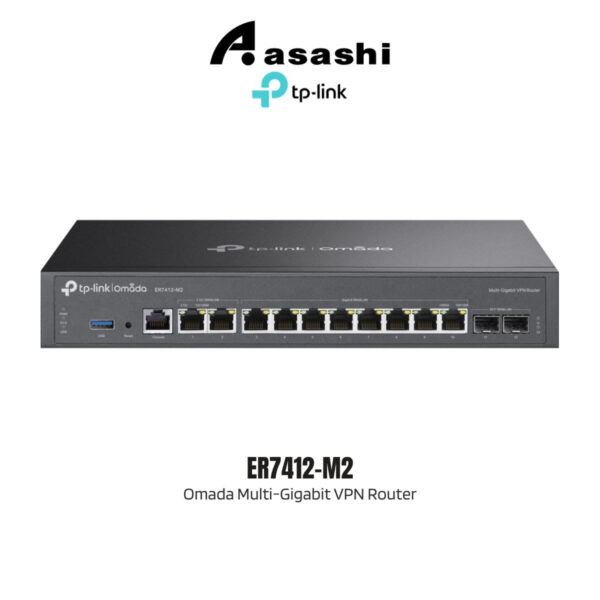

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router
TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router

Original price was: RM1,549.00.Current price is: RM1,449.00.

👁 Currently 32 people are viewing this product.

Out of stock

SKU: ER7412-M2 Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

ER7412-M2

Omada Multi-Gigabit VPN Router

  • Quad-core @2.0GHz CPU
  • 2× 2.5G RJ45 WAN/LAN ports
  • 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
  • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
  • Load Balancing on up to 11 WAN ports△ increases the utilization rate of multi-line broadband
  • High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
  • Centralized cloud management via the web or the Omada app*
  • DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security


SECURITY
Access Control • Source/Destination IP-Based ACL
• Stateful ACL
• IPv4/IPv6 ACL
• Location Based ACL
Filtering • WEB Group Filtering§
• URL Filtering
• Web Security§
ARP Inspection • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface • 1× 2.5G RJ45 WAN/LAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 2× Gigabit SFP WAN/LAN Ports
• 8× Gigabit RJ45 WAN/LAN Ports

• 1× RJ45 Console Port
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 100–240 VAC, 50/60 Hz
Flash 128MB NAND
DRAM 1 GB DDR4
Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting • Desktop
• Rackmountable
Max. Power Consumption 18.5W (With USB 3.0 connected)
PERFORMANCE
IPS Throughput 523Mbps
DPI Throughput 2.2Gbps
GRE • Unencrypted: 1153.0 Mbps
• Encrypted: 559.2 Mbps
WireGuard VPN 771.6 Mbps
Concurrent Session 1,000,000
New Sessions /Second 7,000
NAT (Static IP) 2345.71 Mbps / 2351.22 Mbps
NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps
NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps
NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps
NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 1125.60 Mbps
• ESP-SHA256-AES256: 1133.1 Mbps
• ESP-SHA384-AES256: 1126.6 Mbps
• ESP-SHA512-AES256: 1132.8 Mbps
OpenVPN UDP: 266.2 Mbps
L2TP VPN Throughput • Unencrypted: 2724.5 Mbps
• Encrypted: 1018.4Mbps
PPTP VPN Throughput • Unencrypted: 3035 Mbps
• Encrypted: 534.6 Mbps
SSL VPN Throughput 263.1 Mbps
66 Byte Packet Forwarding Rate 1833 Mbps / 1835 Mbps
1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static IP/Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Advanced Routing • Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)
Bandwidth Control IP/Port-based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
NAT • One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 80 Tunnels
IPsec VPN • 150 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (15)**
• 150 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (15)**
• 150 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (11)**
• 121 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
WireGuard VPN • 20 Tunnels
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*
• Hotspot (Local User/Voucher*/SMS*/Radius*)
• External Radius Server
• External Portal Server*
• LDAP
Management Features
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*
OTHERS
Certification CE, FCC
Package Content • ER7412-M2
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• RJ45 Console Cord
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–45 ℃ (32–113 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing
Weight 1.50 kg
Dimensions 30.00 × 20.00 × 10.00 cm
