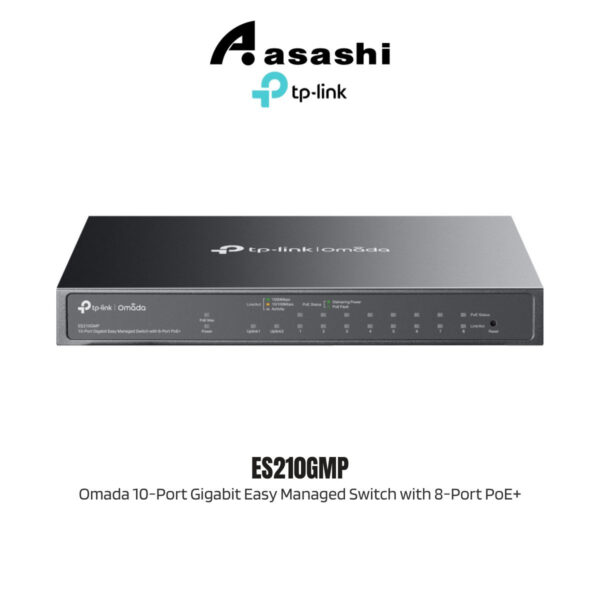

TP-Link ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

👁 Currently 22 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

ES210GMP

Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
123W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE**, QoS^△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

HARDWARE FEATURES
Interface	• 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE) • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP/RJ45 Combo Port • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• Desktop • Wall Mount
Physical Security Lock	√
Power Supply	DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
PoE Ports (RJ45)	• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 123W available for all PoE+ ports, 30W max per port • PoE Auto Recovery^‡ • Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	8.2×4.9×1.0 in (209×126×26 mm)
Surge Protection	±6kV

PERFORMANCE
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control^△
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES210GMP • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
