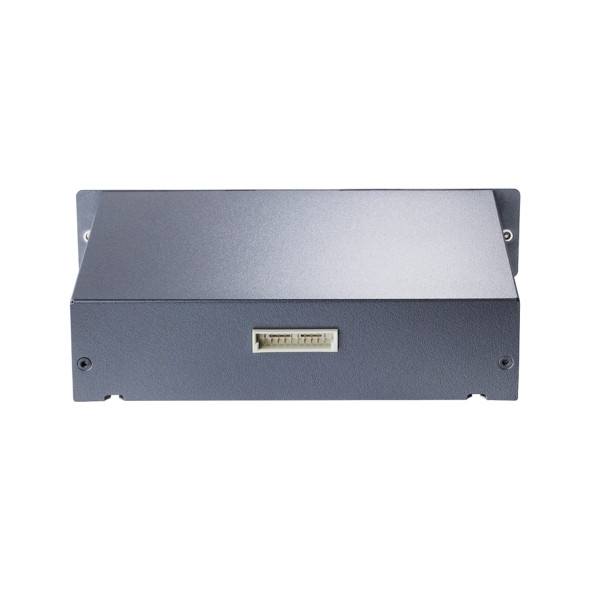

TP-Link MCRP100 Omada Redundant Power Supply Module

TP-Link MCRP100 Omada Redundant Power Supply Module

What this product does

The TP-Link Redundant Power Supply Module MCRP100 (TL-MCRP100) is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 12VDC output with rated wattage of 75W. The power supply module supports output over-voltage/short circuit/over-current protection. MCRP100 is applicable to 14-Slot Rackmount Chassis MC1400.

* MCRP100 v2.2 supports MC1400 v4.20, TL-MCRP100 v2.0 supports TL-MC1400 v3.0/v4.0 and TL-FC1420 v1.0, TL-MCRP100 v1.0 supports TL-MC1400 v1.0/2.0.

Specifications

• Model: TL-MCRP100

• Type: AC-input, DC-output redundant power supply module

• Compatibility: Designed for TP-Link's 14-slot rackmount chassis TL-MC1400

• Fan: 1 internal fan for cooling

Electrical Specifications

• AC Input:

  • Voltage: 100–240V AC

  • Frequency: 50/60Hz

  • Current: 3A

• DC Output:

  • Voltage: 12V DC

  • Current: 8.5A

  • Maximum Power: 102W

• Protection Features:

  • Over-voltage protection

  • Over-current protection

  • Short-circuit protection

Physical Specifications

• Dimensions: 193.4 mm (L) × 162.3 mm (W) × 42.2 mm (H)

• Weight: Approximately 500g

Environmental Specifications

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -35°C to 85°C (-31°F to 185°F)

• Operating Humidity: 20% to 90% RH, non-condensing

• Storage Humidity: 10% to 95% RH, non-condensing
