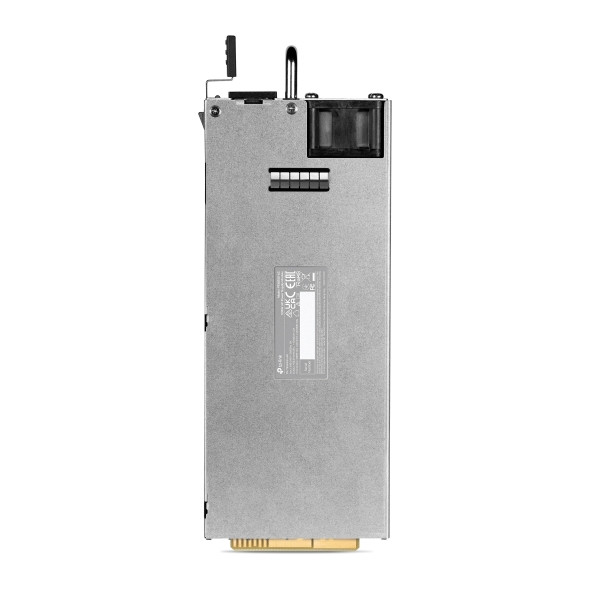

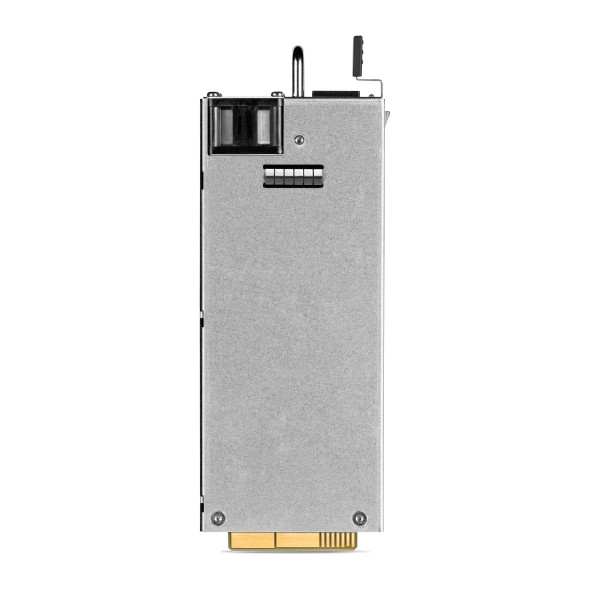

TP-Link PSM500-AC 500 W AC Power Supply Module

TP-Link PSM500-AC 500 W AC Power Supply Module

What This Product Does

The TP-Link Power Supply Module PSM500-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 500 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.

Specifications

• Model: TP-Link PSM500-AC

• Type: AC-input, DC-output power supply module

• Maximum Output Power: 500W

• Output Voltage: 53.5V DC

• Output Current: 9.35A

• Hot-Swappable: Yes

• Redundant Power Supply: Yes

Electrical Specifications

• AC Input Voltage: 100–240V AC

• Input Frequency: 50/60Hz

• Input Current: 8A

• Surge Protection: ±6 kV

• Power Conversion: AC to DC

Protection Features

• Over-Voltage Protection

• Under-Voltage Protection

• Over-Current Protection

• Short Circuit Protection

Physical Specifications

• Dimensions: 259.5 mm (L) × 95.8 mm (W) × 40.1 mm (H)

• Weight: Not specified

• Housing Material: Metal

• Color: Metallic

Environmental Specifications

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% RH, non-condensing

• Storage Humidity: 5% to 90% RH, non-condensing
