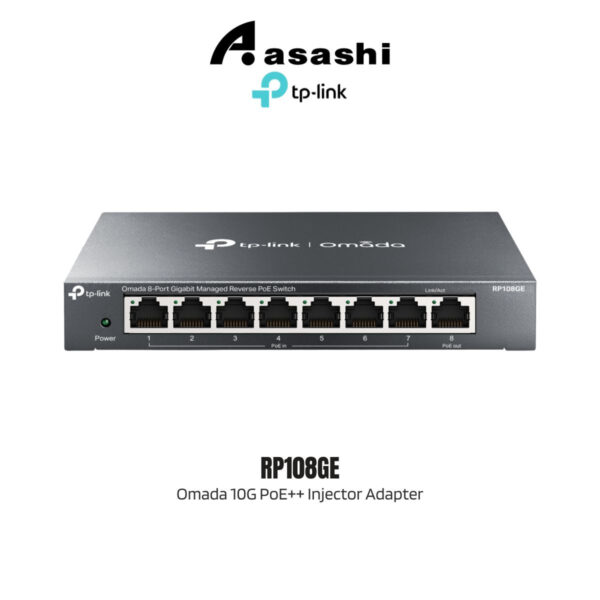

TP-Link RP108GE Omada 10G PoE++ Injector Adapter

👁 Currently 33 people are viewing this product.

Out of stock

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

TL-RP108GE

8-Port Gigabit Managed Reverse PoE Switch

7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports
1 DC output port that supports both 5V and 12 V voltage switching
Durable metal casing of superior quality and professional appearance
Intelligent management via a web user interface and downloadable utility
Green technology reduces power consumption

HARDWARE FEATURES
Standards and Protocols	CSMA/CD
Interface	7 Passive PoE-in RJ45 Ports: 10/100/1000Mbps Auto-Negotiation Voltage: 24/48 V (mixture is not supported) Power pin of Ethernet cable: 4/5+ 7/8- 1 Passive PoE-out RJ45 Port: 10/100/1000Mbps Auto-Negotiation Voltage: depending on the input voltage of PoE-in ports Power pin of Ethernet cable: 4/5+ 7/8- 1 DC Output Port: Voltage: 5/12 V
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 1000Base-T: UTP category 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m)
LED	Power, Link/Act LED
Packet Forwarding Rate	11.9 Mbps
Mac Address Table	4 K
Jumbo Frame	16 KB
Switching Capacity	16 Gbps
IEEE Standards	IEEE802.3ab, IEEE802.3i, IEEE802.3p IEEE802.3q, IEEE802.3x, IEEE802.3u
Data Rates	Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex) Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex) Gigabit Ethernet: 2000 Mbps (Full Duplex)
Dimensions ( W x D x H )	6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm)
Max. Power Consumption	3.98 W (with no PD connected) 18.01 W (24 V with PD connected) 32.74 W (48 V with PD connected)
Max Heat Dissipation	13.57 BTU/h (with no PD connected) 61.41 BTU/h (24 V with PD connected) 111.64 BTU/h (48 V with PD connected)

SOFTWARE FEATURES
Quality of Service	Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Transmission Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Content	TL-RP108GE Power Cord Installation Guide Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
