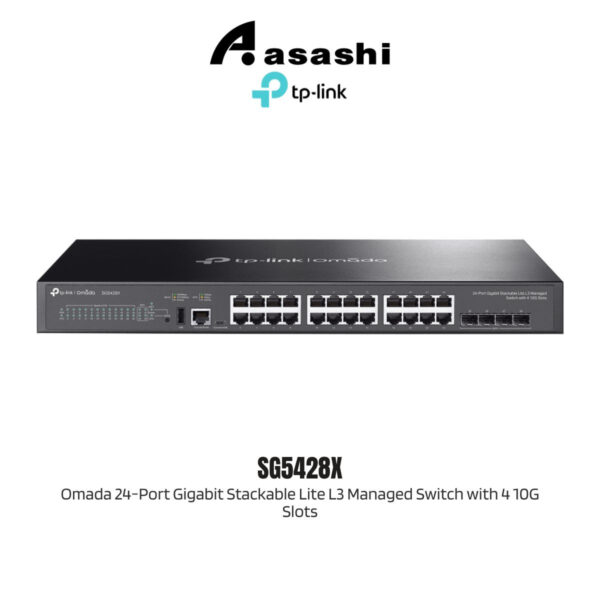

TP-Link SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 10G Slots
TP-Link SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 10G Slots

TP-Link SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 10G Slots

Original price was: RM2,699.00.Current price is: RM2,599.00.

👁 Currently 16 people are viewing this product.

Out of stock

SKU: SG5428X Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

SG5428X

 New

Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots

  • 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
  • 128 Gbps switching capacity per unit
  • Physical stacking up to 4 units for built-in redundancy and performance
  • L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
  • Security strategies: ACL, Port Security, DoS Defend, 802.1X
  • ERPS supports rapid protection and recovery in a ring topology
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI, SNMP, and RMON


HARDWARE FEATURES
Interface • 24× 10/100/1000 Mbps RJ45 Ports
• 4× 1/10 Gbps SFP+ Slots*
• 1× USB 2.0 Port
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
Fan Quantity Fanless
Power Supply 100-240 V~50/60 Hz
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rackmountable
Max. Power Consumption • 19.6 W (220V/50Hz @ 25 °C)
• 19.9 W (110V/60Hz @ 25 °C)
Max Heat Dissipation • 66.87 BTU/hr (220V/50Hz @ 25 °C)
• 67.86 BTU/hr (110V/60Hz @ 25 °C)
PERFORMANCE
Switching Capacity 128 Gbps per Unit
Stacking • Stacking Number: 4
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)
Packet Forwarding Rate 95.23 Mpps
MAC Address Table 16 K
Packet Buffer Memory 12 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • Class of Service
– 8 Queues of Priority
– Port Priority
– IEEE 802.1p Priority
– DSCP Priority
– Queue Min-Bandwidth
– Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
– Rate Limit
– Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
– QoS remark (802.1P Remark, DSCP Remark)
L3 Features • IP Interfaces:
– IPv4: Max 128, IPv6: Max 128
• Static Routing
– IPv4 Max 512, IPv6: Max 128
• Host Route Table: Max 1,024 entries
• RIP: Version v1/v2, Max 1,796
• OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450
• Static ARP: 512 static entries
• Dynamic ARP: 3,600 dynamic entries
• Proxy ARP
• DHCP Server:
– Max 64 IP Pools
– Max 1,000 Manual Binding Entries
• DHCP Relay:
– Relayed Interface
– Relayed VLAN
L2 and L2+ Features • Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• Multicast
– IGMP Snooping
– MLD Snooping
– L2 Multicast Table: Max 2,000
– Fast Leave
– Multicast VLAN Registration (MVR)
– Static Multicast Groups
– Multicast Filtering
Advanced Features • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†

ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
VLAN • Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 60
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• Voice VLAN
• Private VLAN
Security • Port Isolation
• CPU-Defend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard
• IPv6-MAC
-Port Binding
-1,024 Entries
– DHCPv6 Snooping
– ND Detection
– ND Snooping
– IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
– kbps/ratio control mode
• 802.1X
– Port base authentication
– Mac base authentication
– VLAN Assignment
– MAB
– Guest VLAN
– RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access control
Management Features
Omada App Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
– Trap/Inform
– RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• IEEE 802.3az Energy Efficient Ethernet (EEE)
OTHERS
Package Content • SG5428X Switch
• Power Cord
• Console Cable
• Rackmount Kits
• Rubber Feet
• Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F)
• Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing


Weight 1.50 kg
Dimensions 45.00 × 20.00 × 10.00 cm
