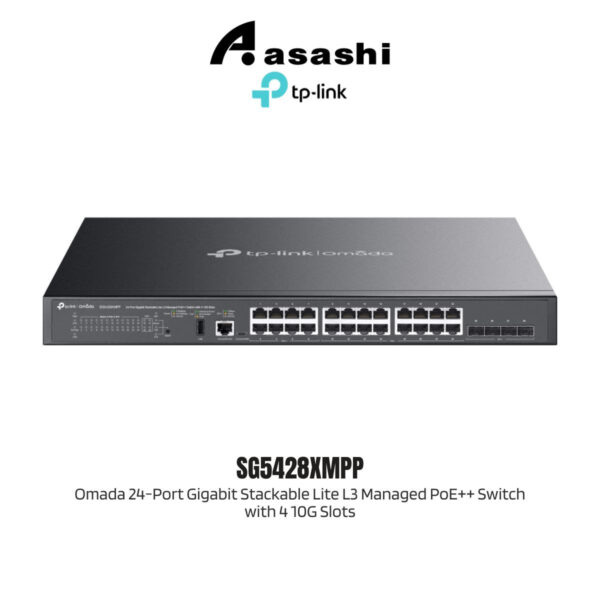

Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots
8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
16× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
4× 10 Gbps SFP+ slots
Up to 500W total PoE budget*
Fast PoE and Perpetual PoE
Physical stacking up to 4 units for built-in redundancy and performance
L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
Security strategies: ACL, Port Security, DoS Defend, 802.1X
ERPS supports rapid protection and recovery in a ring topology
Centralized cloud management via the Omada SDN controller
Standalone management via web, CLI, SNMP, and RMON
HARDWARE FEATURES
Interface
• 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)
• 4× 1/10 Gbps SFP+ Slots**
• 1× USB 2.0 Port
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
Fan Quantity
3
Power Supply
100-240 V~ 50/60 Hz
PoE Ports (RJ45)
• Standard: 802.3af/at/bt compliant
• PoE++ Ports: Ports 1~8 (up to 90W per Port)
• PoE+ Ports: Ports 9~24 (up to 30W per Port)
• Power Budget: 500W*
• Fast PoE
• Perpetual PoE
Dimensions ( W x D x H )
17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
• 587.7 W (220V/50Hz) ( with 500 W PD connected @ 25 °C)
• 615.8 W (110V/60Hz) ( with 500 W PD connected @ 25 °C)
Max Heat Dissipation
• 2004.06 BTU/hr (220V/50Hz) ( with 500 W PD connected @ 25 °C)
• 2099.88 BTU/hr (110V/60Hz) ( with 500 W PD connected @ 25 °C)
PERFORMANCE
Switching Capacity
128 Gbps per Unit
Stacking
• Stacking Number: 4
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)
Packet Forwarding Rate
95.23 Mpps
MAC Address Table
16 K
Packet Buffer Memory
12 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
• Class of Service
– 8 Queues of Priority
– Port Priority
– IEEE 802.1p Priority
– DSCP Priority
– Queue Min-Bandwidth
– Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
– Rate Limit
– Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
– QoS remark (802.1P Remark, DSCP Remark)
L3 Features
• IP Interfaces:
– IPv4: Max 128, IPv6: Max 128
• Static Routing
– IPv4 Max 512, IPv6: Max 128
• Host Route Table: Max 1,024 entries
• RIP: Version v1/v2, Max 1,796
• OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450
• Static ARP: 512 static entries
• Dynamic ARP: 3,600 dynamic entries
• Proxy ARP
• DHCP Server:
– Max 64 IP Pools
– Max 1,000 Manual Binding Entries
• DHCP Relay:
– Relayed Interface
– Relayed VLAN
L2 and L2+ Features
• Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• Multicast
– IGMP Snooping
– MLD Snooping
– L2 Multicast Table: Max 2,000
– Fast Leave
– Multicast VLAN Registration (MVR)
– Static Multicast Groups
– Multicast Filtering
