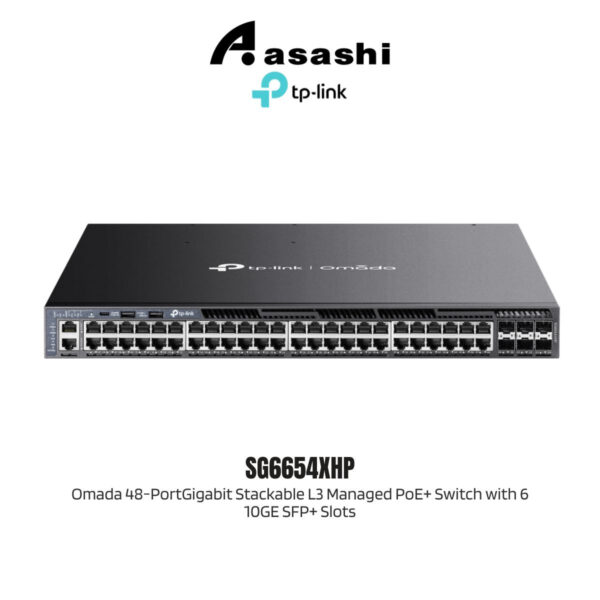

TP-Link SG6654XHP Omada 48-PortGigabit Stackable L3 Managed PoE+ Switch with 6 10GE SFP+ Slots
TP-Link SG6654XHP Omada 48-PortGigabit Stackable L3 Managed PoE+ Switch with 6 10GE SFP+ Slots

TP-Link SG6654XHP Omada 48-PortGigabit Stackable L3 Managed PoE+ Switch with 6 10GE SFP+ Slots

Original price was: RM19,000.00.Current price is: RM18,000.00.

👁 Currently 22 people are viewing this product.

Out of stock

SKU: SG6654XHP Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

SG6654XHP

Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots

  • 48× Gigabit RJ45 PoE+ ports
  • 6× 10 Gbps SFP+ slots
  • Up to 1440 W total PoE budget*
  • Physical Stacking for built-in redundancy and performance
  • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
  • Security Strategies: ACL, Port Security, DoS Defend, 802.1X
  • Highly Available with two field-replaceable power supplies,** VRRP, and ERPS
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI, SNMP, and RMON



HARDWARE FEATURES
Interface • 48× 10/100/1000 Mbps PoE+ RJ45 Ports
• 6× 10G SFP+ Slots
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port
Fan Quantity Four Field-replaceable and Hot-swappable Fans
Power Supply Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)

**Shipping with one PSM900-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
PoE Ports (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port
• PoE Power Budget: up to 1440 W*

*The total PoE budget varies with the power supply modules.
Dimensions ( W x D x H ) 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting Rackmountable
Max. Power Consumption • 67.24 W (110 V/60 Hz) (With no PD connected)
• 1767.7 W (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC)
Max Heat Dissipation • 229.29 BTU/hr (110 V/60 Hz) (With no PD connected)
• 6,027.86 BTU/hr (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC)
PERFORMANCE
Switching Capacity 216 Gbps per Unit
Stacking • Stacking Number: 8
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: Up to 120 Gbps (6 stack ports)
Packet Forwarding Rate 160.7 Mpps
MAC Address Table 32 K
Packet Buffer Memory 3 MB
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • Class of Service
– 8 Queues of Priority
– Port Priority
– IEEE 802.1p Priority
– DSCP Priority
– Queue Min-Bandwidth
– Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
– Rate Limit
– Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
– QoS remark (802.1P Remark, DSCP Remark)
L3 Features • IP Interfaces:
– IPv4: Max 256, IPv6: Max 256
• Static Routing
– Max 1,024, IPv6: Max 512
• Host Route Table: Max 6,100 entries
• RIP: Version v1/v2, Max 8,190
• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination
• Static ARP: 512 static entries
• Dynamic ARP: 7,680 dynamic entries
• Proxy ARP
• DHCP Server:
– Max 64 IP Pools
– Max 1,000 Manual Binding Entries
• DHCP Relay:
– Relayed Interface
– Relayed VLAN
L2 and L2+ Features • Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• Supports 2,048 IGMP groups
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• PIM-DM, PIM-SM (IPv4)
• Multicast
– IGMP Snooping
– MLD Snooping
– L2 Multicast Table
– Fast Leave
– Multicast VLAN Registration (MVR)
– Static Multicast IP
– Multicast Filtering
Advanced Features • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†

ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
VLAN • Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• VLAN VPN
• Voice VLAN
• Private VLAN
Security • Port Isolation
• CPU-Defend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard
• IPv6-MAC
-Port Binding
-1,024 Entries
– DHCPv6 Snooping
– ND Detection
– ND Snooping
– IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
– kbps/ratio control mode
• 802.1X
– Port base authentication
– Mac base authentication
– VLAN Assignment
– MAB
– Guest VLAN
– RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access control
Management Features
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
– Trap/Inform
– RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• EEE
OTHERS
Package Content • SG6654XHP Switch
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature:
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

• Storage Temperature: -40 °C to 70 ℃ (-40 °F to 158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Weight 5.00 kg
Dimensions 45.00 × 45.00 × 10.00 cm
