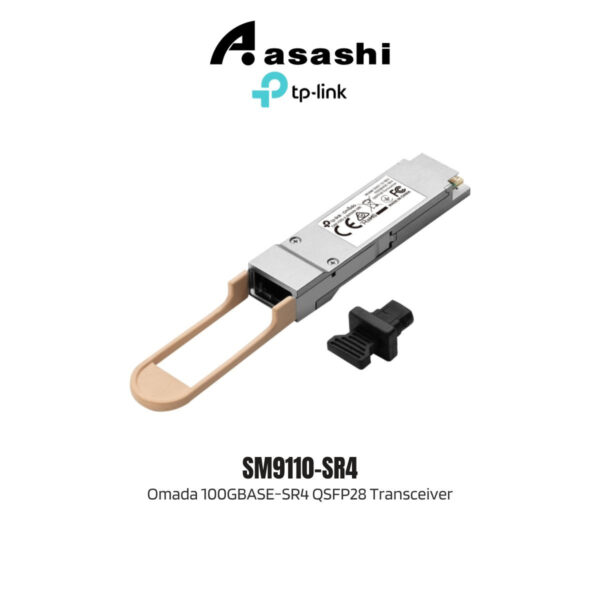

TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver
TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver

TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver

Original price was: RM539.00.Current price is: RM499.00.

👁 Currently 20 people are viewing this product.

Out of stock

SKU: SM9110-SR4 Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

SM9110-SR4

Omada 100GBASE-SR4 QSFP28 Transceiver

  • 100GBASE-SR4 multi-mode QSFP28 Transceiver
  • Supports Digital Diagnostic Monitoring (DDM)
  • Up to 100 m transmission distance
  • Hot-Pluggable with maximum flexibility
  • Wide operating temperature
  • Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)


Transceiver
Form Factor QSFP28
Standards and Protocols • IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA,
• SFF-8665, SFF-8636, SFF-8436,
• CPRI, eCPRI
• TCP/IP
Wave Length 850 nm
Power Supply 3.3 V
Max. Power Consumption Max 1.8 W at 100 Gbps
Max 1.54 W at 40 Gbps
Fiber Type 50/125um MMF (Multimode)
Max. Cable Length 70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps)
100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps)
Data Rate Dual Rate 103.125 Gbps and 41.2 Gbps
Connector MTP/MPO-12
Transmission power -8.4 dBm to 2.4 dBm @103.125 Gbps
-7.6 dBm to 2.4 dBm @41.2 Gbps
Transmitter Type VCSEL 850 nm
Receiver Type PIN
Receiver Sensitivity <-10.3 dBm @103.125 Gbps
<-9.5 dBm @41.2 Gbps
Receiver Overload >2.4 dBm @103.125 Gbps
>2.4 dBm @41.2 Gbps
Extinction Ratio >2 dB @103.125 Gbps
>3 dB @41.2 Gbps
Regulatory Compliance CE, FCC, RoHS
HARDWARE FEATURES
DDM Yes
QSFP28 MSA Yes
Hot Swappable Yes
Dimensions ( W x D x H ) 4.88*0.72*0.46 in (124*18.35*11.7 mm)
Package Content
Package Content • SM9110-SR4
• Installation Guide
ENVIRONMENT
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 0 to 85% RH Non-condensing
Storage Humidity 0 to 85% RH Non-condensing
Weight 0.50 kg
Dimensions 15.00 × 10.00 × 10.00 cm
