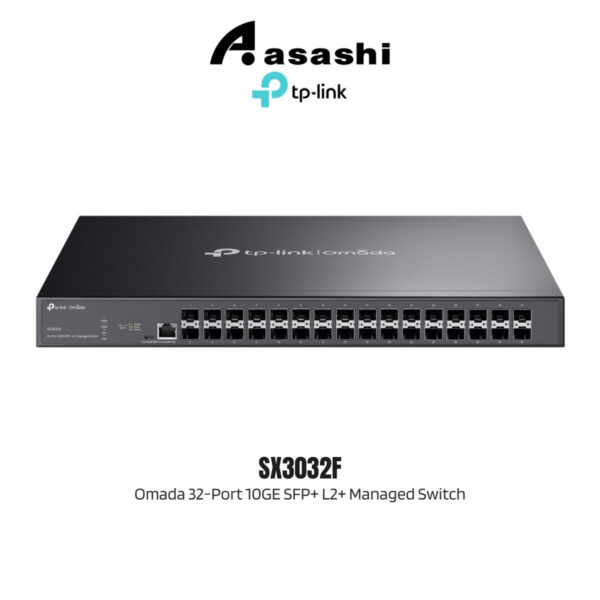

TP-Link SX3032F Omada 32-Port 10GE SFP+ L2+ Managed Switch
TP-Link SX3032F Omada 32-Port 10GE SFP+ L2+ Managed Switch

TP-Link SX3032F Omada 32-Port 10GE SFP+ L2+ Managed Switch

Original price was: RM4,799.00.Current price is: RM4,699.00.

👁 Currently 10 people are viewing this product.

Out of stock

SKU: SX3032F Categories: , , Brand:
In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

SX3032F



Omada 32-Port 10GE SFP+ L2+ Managed Switch

  • 32× 10 Gbps SFP+ slots
  • 640 Gbps switching capacity
  • Two internal fixed power supply modules back each other up
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design


HARDWARE FEATURES
Interface • 32× 1/10Gbps SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity 2 internal fixed fans
Physical Security Lock √
Power Supply • 1+1 Redundant Power Supply (internal fixed)
• 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3×13.0×1.7 in (440×330×44 mm)
Mounting Rack Mountable
Max. Power Consumption 49.4 W (220 V / 50 Hz)
PERFORMANCE
Switching Capacity 640 Gbps
Packet Forwarding Rate 240 Mpps
MAC Address Table 32 K
Packet Buffer Memory 24 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
• Bandwidth Control: Port/Flow-based Rating Limiting
• Smoother Performance
• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features • 128 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 48 IPv4/IPv6 Static Routes
• Static ARP: 128 static entries
• 510 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
L2 Multicast • Supports 4000 (IPv4, IPv6) IGMP groups
• IGMP Snooping
• IGMP Authentication
• Multicast VLAN Registration (MVR)
• MLD Snooping
• Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Unified Configuration†
• Reboot Schedule†

ISP Features:
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS
• 802.3ah Ethernet Link OAM
• DDM
• sFlow
VLAN • VLAN Group (802.1q VLAN): Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 30 Entries
• Protocol VLAN
• GVRP
• VLAN VPN (QinQ): VLAN Mapping, VLAN Replace
• Voice VLAN
Access Control List • Time-based ACL
• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL applies to Port/VLAN
Security • IP-MAC-Port Binding
– 512 Entries
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard
• IPv6-MAC-Port Binding
– 512 Entries
– DHCPv6 Snooping
– ND Detection
– ND Snooping
– IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security: Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
• 802.1X
– Port base authentication
– MAC-based authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Radius authentication and accountability support
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control
IPv6 • IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs • MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Password Recovery
• SNTP
• System Log
OTHERS
Certification CE, FCC, RoHS
Package Content • SX3032F Switch
• 2× Power Cords
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature: -5–45 °C (23–113 °F);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Weight 6.00 kg
Dimensions 45.00 × 35.00 × 10.00 cm
