Security Strategies: ACL, Port Security, DoS Defend, 802.1X
Highly Available with two field-replaceable power supplies*, VRRP, and ERPS
Centralized cloud management via the Omada SDN controller
Standalone management via web, CLI, SNMP, and RMON
HARDWARE FEATURES
Interface
• 6× 10/25G SFP28 Slots
• 26× 1/10G SFP+ Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type C Console Port
• 1× RJ45 Management Port
Fan Quantity
Four field-replaceable and hot-swappable fans (N+1 redundant)
Physical Security Lock
√
Power Supply
Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)
*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
Max. Power Consumption
86.7 W (110 V/60 Hz)
Dimensions ( W x D x H )
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting
Rack Mountable
Max Heat Dissipation
295.85 BTU/hr (110 V/60 Hz)
PERFORMANCE
Switching Capacity
820 Gbps
Stacking
• Stacking Number: 8
• Stacking Port: 25G SFP28
• Stack Bandwidth: Up to 300 Gbps (6 stack ports)
Packet Forwarding Rate
610.1 Mpps
MAC Address Table
128 K
Packet Buffer Memory
8 MB
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
• Class of Service
– 8 Queues of Priority
– Port Priority
– IEEE 802.1p Priority
– DSCP Priority
– Queue Min-Bandwidth
– Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
– Rate Limit
– Strom Control
• User-Defined OUI
• Smoother Performance
• Action for Flows
– QoS remark (802.1P Remark, DSCP Remark)
L3 Features
• IP Interfaces:
– IPv4: Max 256, IPv6: Max 256
• Static Routing
– IPv4: Max 2,048, IPv6: Max 1,024
• Host Route Table: Max 15,300 entries
• RIP: Version v1/v2, Max 102,400
– RIPng: Max 51,200
• OSPF: Version v2/v3;
– v2: Max 102,400
– v3: Max 51,200
• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexhops per Destination
• Static ARP
– 1,024 static entries
• Dynamic ARP
– 24,576 dynamic entries
• Proxy ARP
• DHCP Server:
– Max 64 IP Pools
– Max 1,000 Manual Binding Entries
• DHCP Relay:
– Relayed Interface
– Relayed VLAN
L2 and L2+ Features
• Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 ports per group
– Up to 120 LAG Groups
• Spanning Tree Protocol
– 802.1d STP
– 802.1w RSTP
– 802.1s MSTP
– Up to 64 MSTI instances (4 at Omada controller mode)
– STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
– Port based
– VLAN based
• Flow Control
– 802.3x Flow Control
• Supports 4,093 IGMP groups
• ERPS: Up to 64 ERPS rings
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Tx/Rx/Both
• RSPAN
• Mac Address
– MAC Address Table
– Static MAC: Max 128 entries
– Dynamic MAC Address: Max 128K entries
– Filtering MAC Address: Max 128 entries
• Virtual MAC (only supported in standalone mode)
• PIM-DM, PIM-SM (IPv4)
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
• Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters
• Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Weight
5.00 kg
Dimensions
45.00 × 40.00 × 10.00 cm
Reviews
There are no reviews yet.

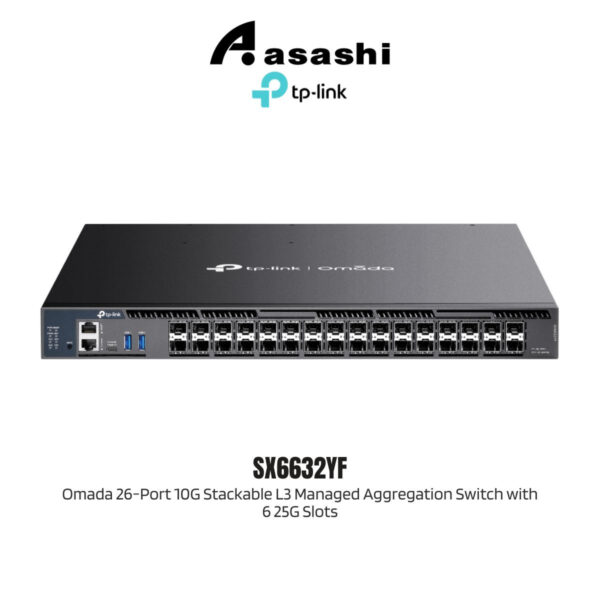

Be the first to review “TP-Link SX6632YF Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots”Cancel Reply
