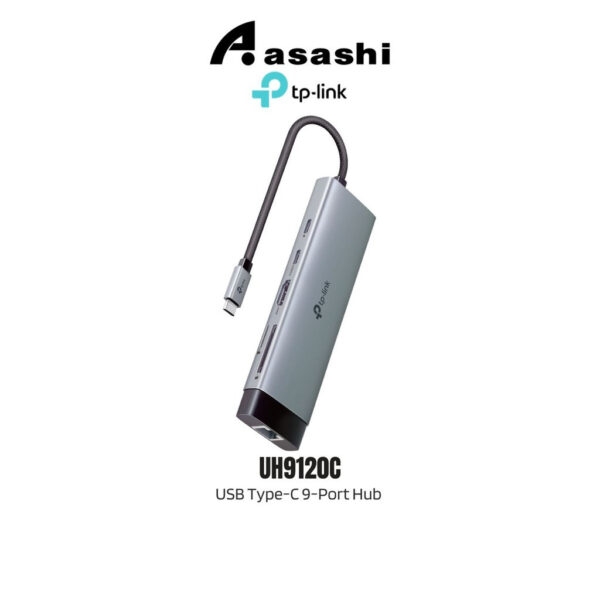

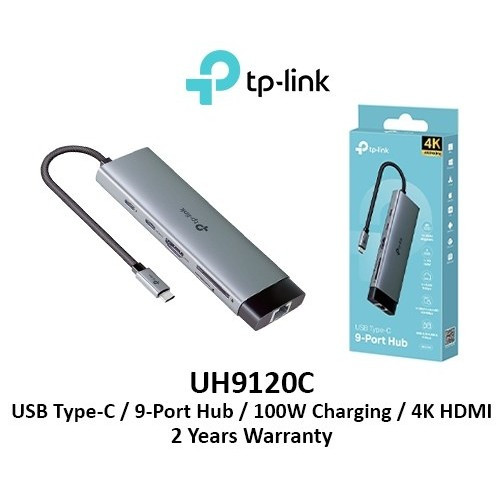

TP-Link UH9120C USB Type-C 9-Port Hub

UH9120C

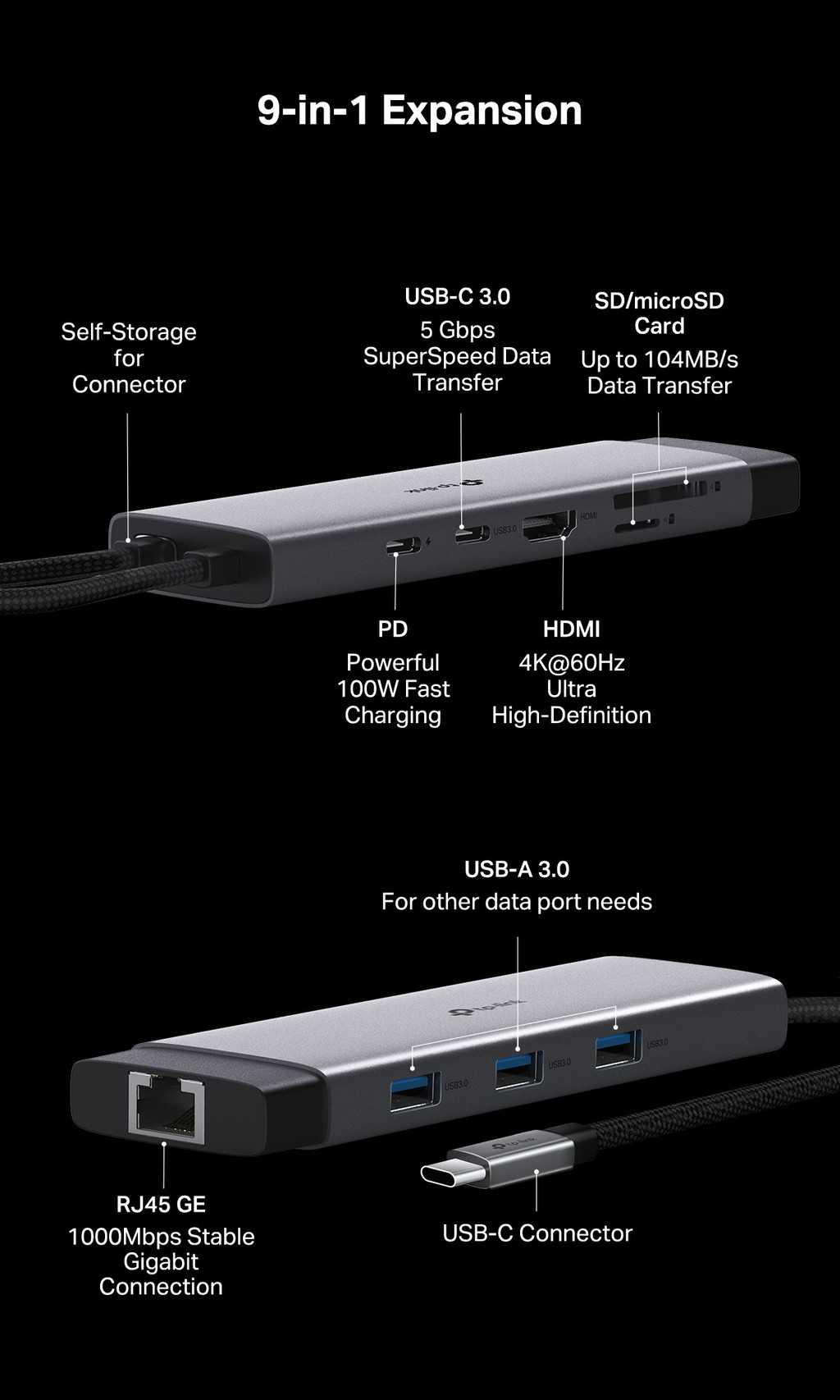

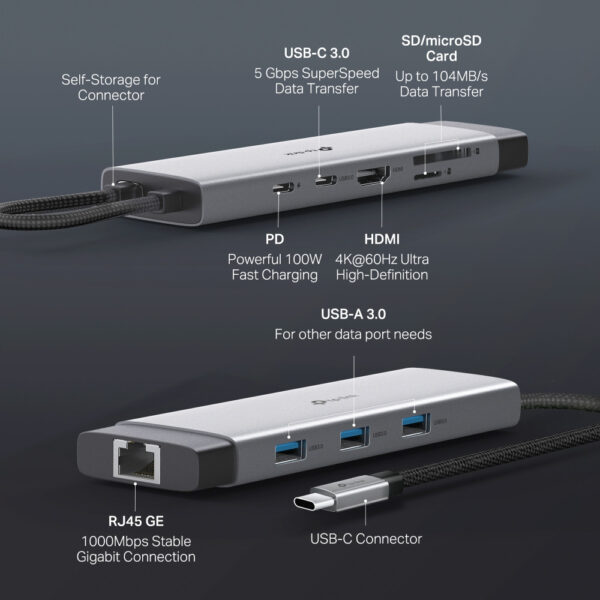

9 in 1 USB-C Hub : UH9120C turns a single USB-C port into 9 ports with a 4K@60Hz HDMI, 1 Gbps ethernet, SD & microSD UHS-I, 100W Power Delivery, 1× USB-C Data Ports, 3× USB-A Data Ports.

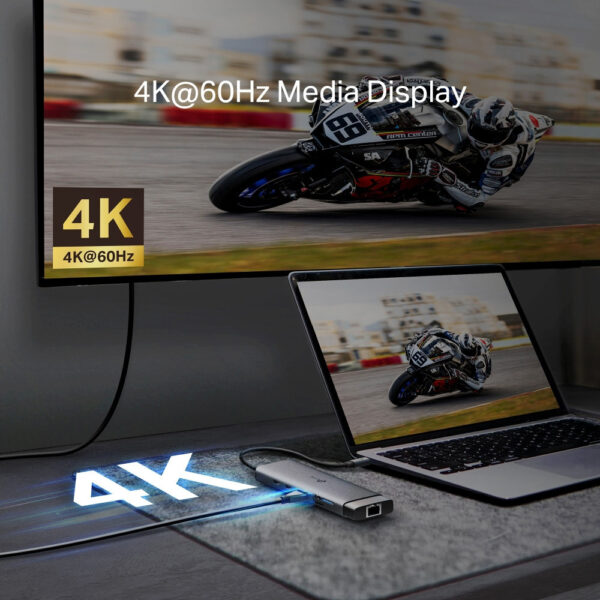

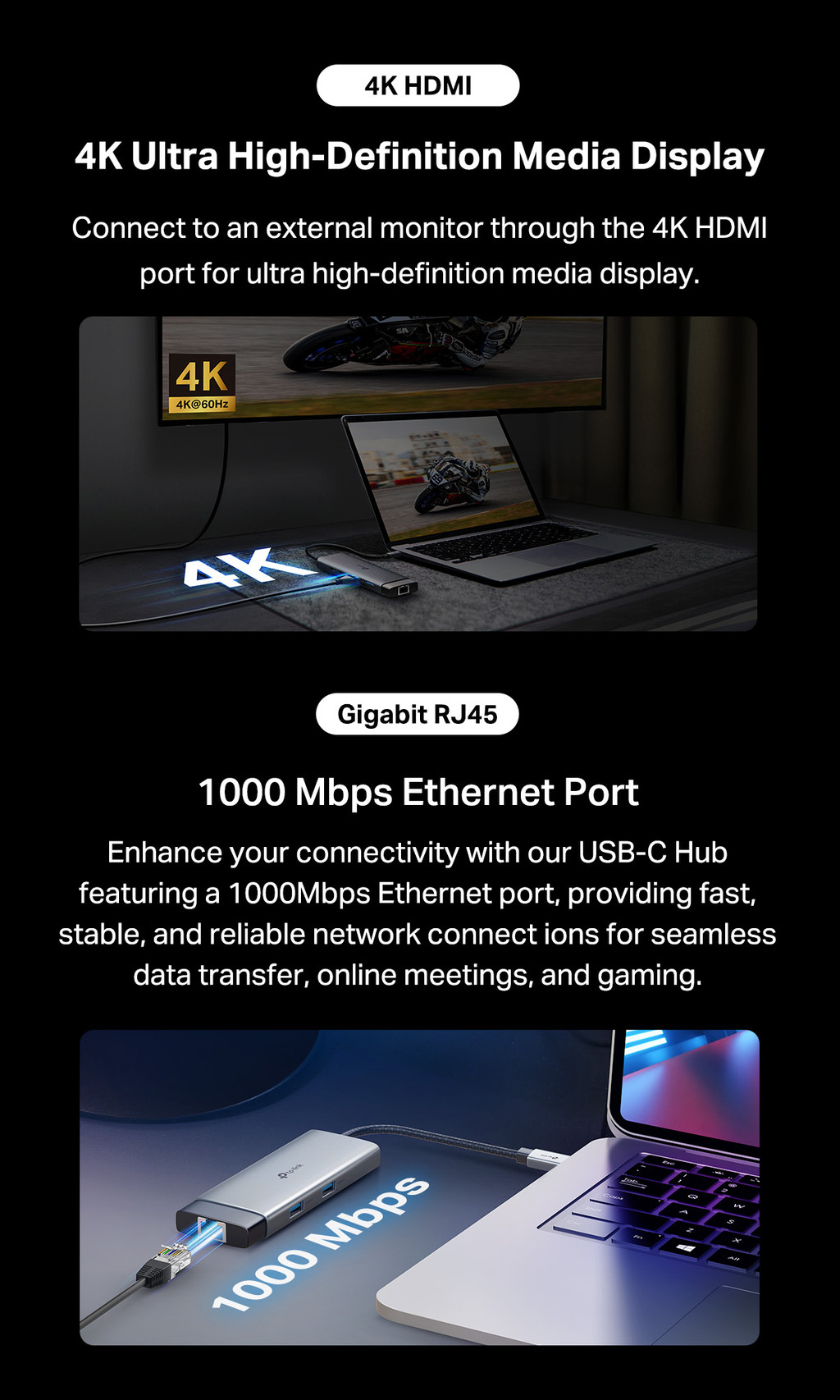

Ultra High-Definition Media Display : Connect to an external monitor via the 4K@60Hz HDMI port for a stunning ultra high-definition experience.

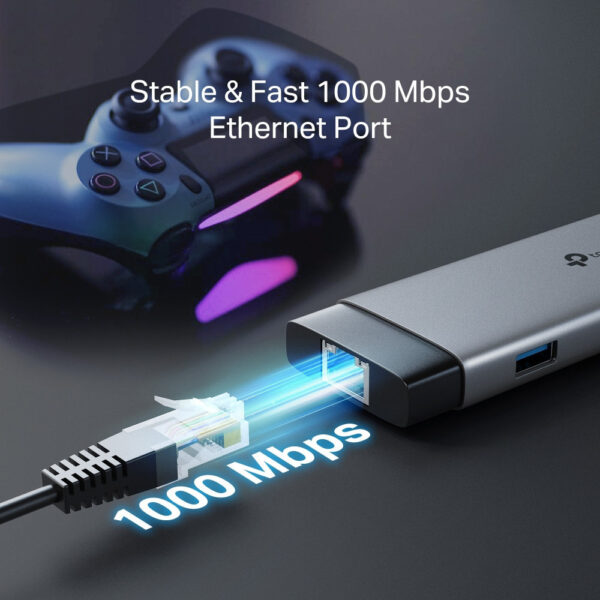

Stable Gigabit Connection : This compact gadget provides stable Gigabit Ethernet connectivity for your ultrabook, Chromebook, laptop, or desktop.

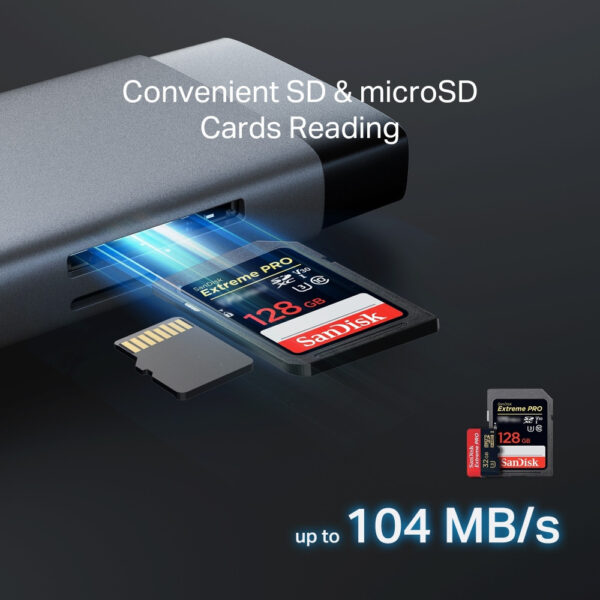

SD & microSD UHS-I : Easily transfer data in SD and microSD cards (up to 104 MB/s). Experience seamless data management with simultaneous read/write capabilities on both microSD and SD cards.

Powerful 100W Fast Charging : Plug the charging cable into UH9120C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.

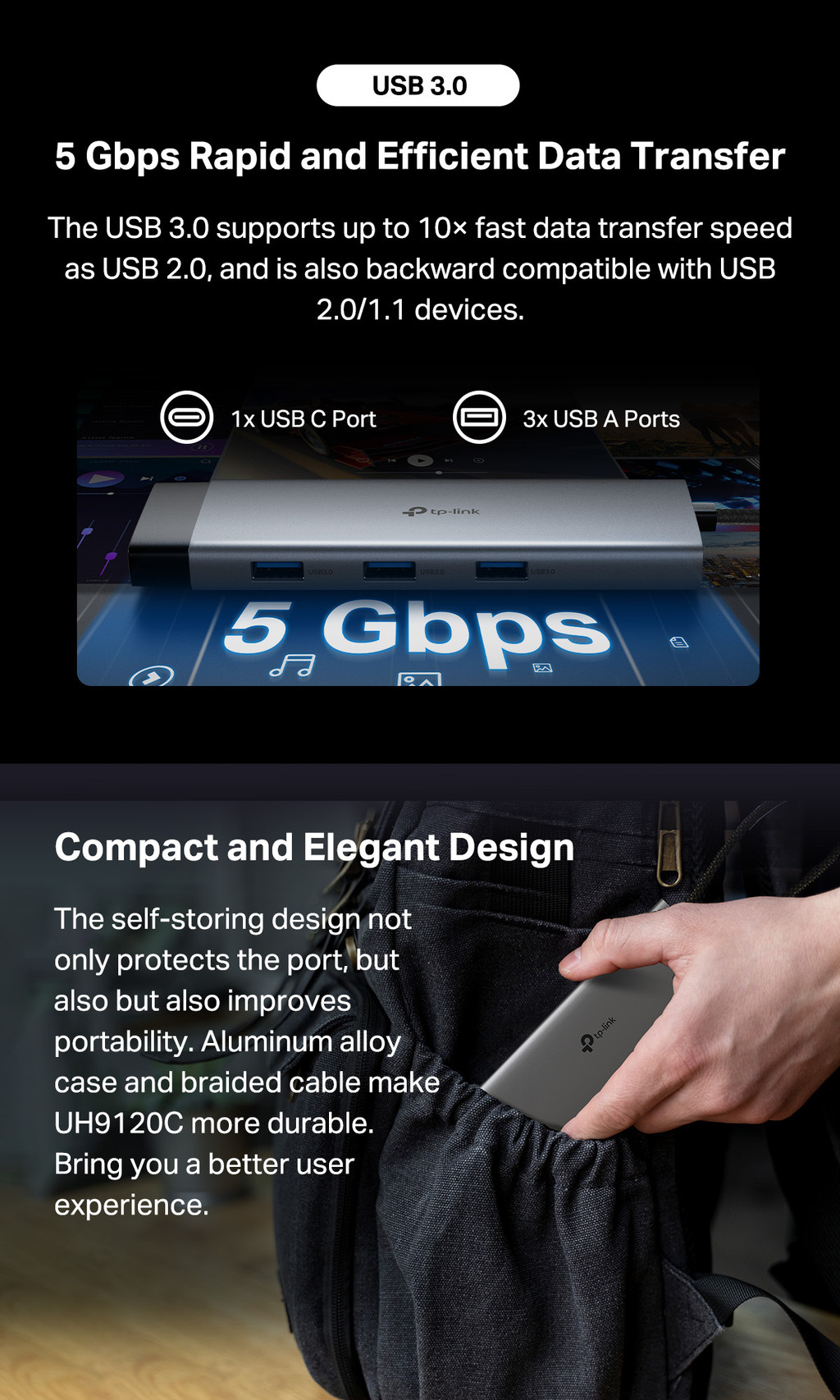

5 Gbps SuperSpeed Data Transfer : UH9120C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.

Easy to Use with Plug & Play : Simply plug in and start using in seconds, thanks to driver-free install with M*c OS X El Capitan Version 10.11.6 and later, Windows 11/10/8.1, Linux OS, i4ad OS, i*S, Android, Chrome OS, and Nintendo OS.

SPECIFICATION

HARDWARE

microSD Interface : UHS-I, up to 104MB/s

SD Interface : UHS-I, up to 104MB/s

Connector : 1*USB Type-C

Number of Ports :9

Video Interface :1*HDMI 4K@60Hz

Ethernet Interface : 1*RJ45 1Gbps

Power Delivery Interface : 1*PD 100W

USB Interface : 1*USB Type-C 5Gbps

3*USB Type-A 5Gbps

OTHER

Supported Systems : M*c OS X 10.9 and later, Windows (7 and later), Linux OS, i4ad OS, i*S, Android, Chrome OS, and Nintendo OS

Certifications

CE, FCC, RoHS, HDMI, BSMI

Environment

Operating Temperature : 0℃~40℃(32℉~104℉)

Operating Humidity : 10%~90% non-condensing

Storage Humidity : 5%~90% non-condensing

PHYSICAL

Case : Aluminum Alloy Case

Cable : 180mm Braided Cable

Dimensions (W×D×H)5.52×1.69×0.56in

(140.2×43×14.3mm)

Package Contents

UH9120C

Quick Installation Guide
