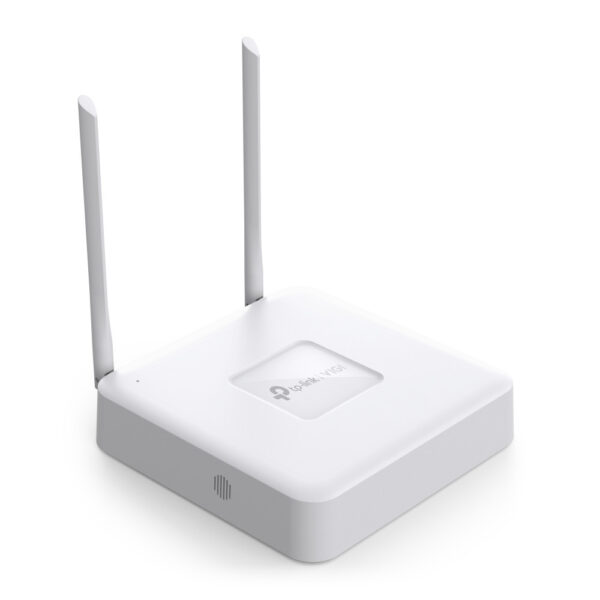

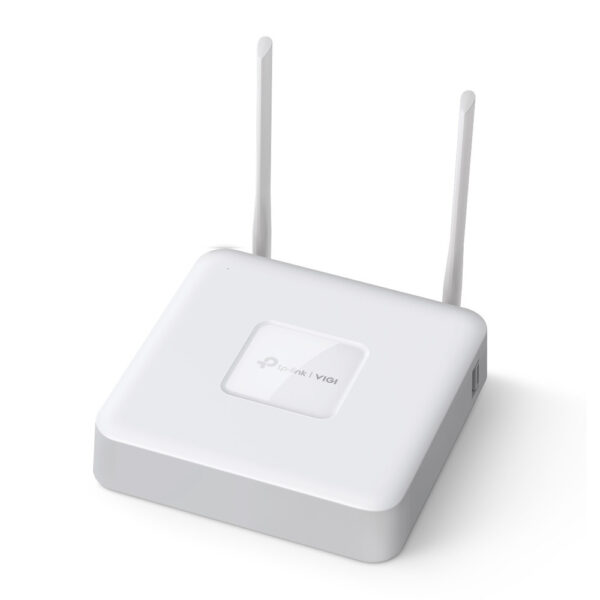

TP-Link VIGI NVR1108H-W VIGI 8 Channel Wi-Fi Network Video Recorder

VIGI NVR1108H-W



VIGI 8 Channel Wi-Fi Network Video Recorder

8-Channel Live View and 4K HDMI Video Output

Built-in Routering Module and Support Wireless Pairing*

Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability

8-Channel Synchronous Playback†

80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth

1 SATA Interface (up to 10 TB) **

H.265+ Compression Technology

HDMI and VGA Simultaneous Output



Remote Monitoring

Simple HDD Installation

1. Press and hold the side cover latch to remove the side cover.

2. Push the HDD to insert it into the hard disk slot.

3. Fasten the screws to secure the HDD, using the correct HDD screw holes.

4. Reinstall the side cover .



Specification



Video and Audio

IP Video Input 8-Channel

Incoming Bandwidth 80 Mbps

Outgoing Bandwidth 60 Mbps

HDM Output Resolution 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output Resolution 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode HDM/VGA Simultaneous Output

Multi-View Display 1/4/6/8



DECODING

Audio Compression G.711A/G.711U/G.726

Video Compression H.265+/H.265/ H.264+/H.264

Record Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous Playback 8-Channel†

Capability

• 25fps:

2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

• 30fps:

4-ch @ 3MP, 2-ch @ 5MP



Record Management

Record Mode

• Manual Recording

• Scheduling Recording

• Motion Detection Recording

Playback Mode

• Instant Playback

• Regular Playback

• Tag Playback

• Event Playback

Backup Mode

• Regular Backup

• Video Clip Backup

Playback Function

• Play

• Pause

• Stop

• Fast Forward

• Fast Backward

• Play By Frame

• Video Clip

• Export Clip

• Lock Recording

• Audio On/Off



NETWORK

Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Mobile Phone Access Android, iOS

Web Browser Chrome (57+), Firefox (52+), Edge (91+)

Interoperability ONVIF Profile S/T/G, CGI



WIRELESS

Standards IEEE 802.11b/g/n

WiFi Channels

• UN: 1-13

• US: 1-11

Wireless Name

• SSID Configuration

• Radio

Network Switch Yes

Frequency 2.4 GHz

Auto Wireless Channel N/A

Wireless Statistics N/A

Throughput Monitoring N/A

Wireless Rate 300Mbps(802.11n), 2 × 2 MIMO

Wireless Security WPA-PSK/WPA2-PSK

Radio Bandwidth

• Auto: Yes

• 20M: Yes

• 40M: Yes

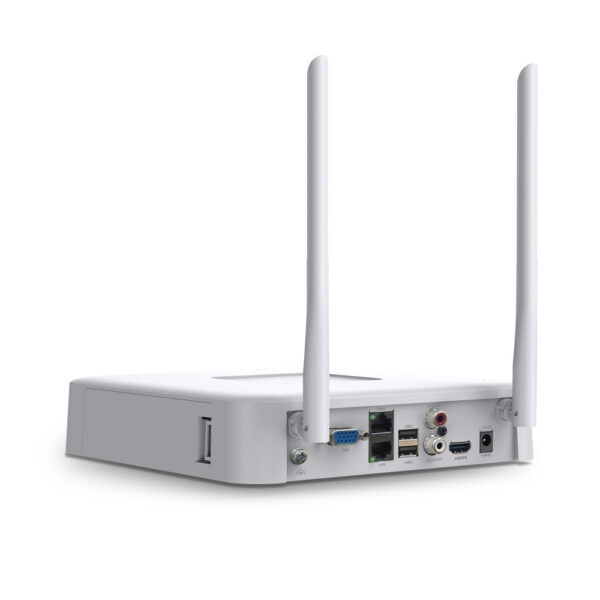

External Interface

Network Interface

• 1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface

• 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface

USB Interface 2× USB 2.0

Audio Interface 1-ch RCA Input; 1-ch RCA Output

Alarm In/Out N/A

Serial Interface N/A

Power 1× DC Jack

Reset Button 1

Speaker 1; Real-time Audio Output without Needing Peripherals.

eSATA N/A

HDM 1

VGA 1F



What's in the box

1x VIGI Network Video Recorder

1x Power Adapter

1x HDD Screws

1x Mouse

1x Quick Installation Guide
