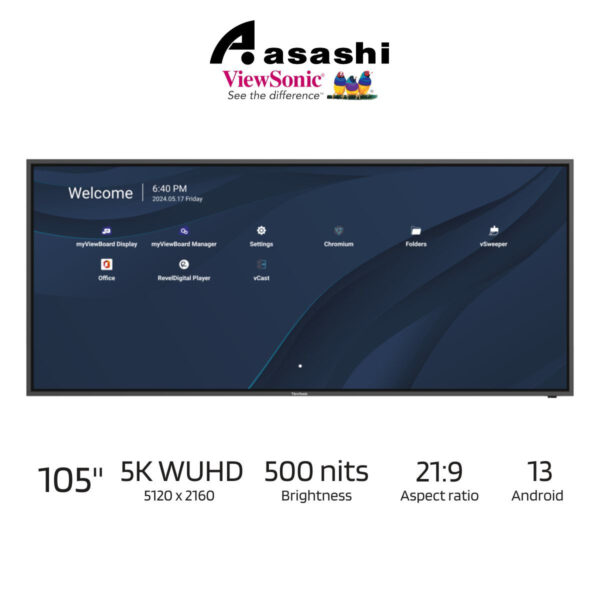

CDE105UW

105” 5K Presentation Display

FEATURES

Ultrawide 105" display with 5K resolution for immersive, crystal-clear visuals
Reliable commercial-grade display ensures smooth multimedia playback 24/7.
21:9 aspect ratio optimized for Microsoft Teams Rooms Front Row mode.
Ultra-slim bezel for sleek, contemporary aesthetic
Portrait layout capability for versatile and high-impact digital signage.

OVERVIEW

The CDE105UW is an ultrawide 105” digital display delivering stunning image performance with 5K resolution. Designed for both corporate and commercial use, it features a 21:9 aspect ratio, providing 33% more screen real estate than a comparable 16:9 display, making it ideal for Microsoft Teams Rooms and Front Row Mode. Powered by an octa-core SoC running Android 13, the CDE105UW enables seamless multitasking with a USB-C port that delivers 100W and multiple wireless content sharing options. It also supports daisy chaining and comes pre-installed with ViewSonic Manager, a centralized platform that streamlines corporate communication and enhances operational efficiency.

SPECIFICATION

Display

Panel Size: 105"
Type/ Tech: TFT LCD Module with DLED Backlight, VA
Display Area (mm): 2449.92(H) x 1033.56(V) (105" diagonal)
Native Resolution: 5120 x 2160
Aspect Ratio: 21:9
Colors: 1.07G colors (8bits+ 2bits FRC)
Brightness: 500nits (typ.)
Contrast Ratio: 5000:1 (typ.)
Response Time: <14ms
Viewing Angles: H = 178, V = 178 (Typ.)
Backlight Life: 50,000 hrs (typ.)
Surface Treatment: Panel Hard Coating 3H
Bezel: 18/18/18/18 mm
Orientation: Landscape & Portrait

Platform

Processor: Octa-Core CPU (A76*4 + A55*4)
RAM: DDR4 8GB
Storage: 128GB (eMMC)

INPUT

HDMI: Rear x 4 (HDMI 2.1x 1, HDMI 2.0 x3)
DisplayPort: 1
Audio: 1 (3.5mm phone jack)
RS-232: 1
OPS Slot: 1 (OPS Slot 80pin)
WiFi Slot: 1 (Module Slot)

OUTPUT

HDMI: 1
Audio: 1 (Line Out)
SPDIF: 1

LAN

RJ45: 1 in 1 out (Android & PC 10M/100M/1000Mbps)

USB

Type A: REAR x 1 (USB2.0 support OTG)
REAR x 2 (USB 3.2 Gen 1)
TOP x 2 (USB3.2 Gen 1)
support Smart USB
Type C: REAR x1 (PD100W+ DP1.2 + USB2.0, 100M ethernet) support smart USB (dynamic PD: W/OPS 65W, W/O OPS 100W)

SPEAKERS

20W x 2 + 20W x 1 (Subwoofer)

COMPATIBILITY

HDMI: HDMI 1: 5120×2160 @60Hz (YUV444)
5120×2160 @30Hz (YUV420)
HDMI 2/3/4: 3840×2160 @60Hz
DisplayPort: 5120 x 2160

Embedded OS

Android 13

Bundled Software

Wireless Presentation: myViewBoard Display, vCast, AirSync* *myViewBoard Display will be replaced by AirSync in Q1 2025.
Device Management: ViewSonic® Manager
ViewSonic Launcher: Yes
Revel Digital: Yes

POWER

Voltage: 100-240VAC +/- 10% Wide Range
Consumption: Normal 320W, Max 800W

ERGONOMICS

Wall Mount (VESA® ): 1000 x 600 mm

OPERATING CONDITIONS

Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

Operating Hours

24/7

DIMENSIONS (W x H x D)

Physical (inch / mm): 98.03 x 42.57 x 3.03 in / 2489.9 x 1081.4 x 77 mm
Packaging (inch / mm): 105.04 x 48.54 x 11.02 in/2668 x 1233 x 280 mm

WEIGHT

Net (lb / kg): 116.96 lb/ 53.05 kg
Gross (lb / kg): 163.14 lb/74 kg

REGULATIONS

cTUVus,FCC/ICES003,CE/EMC,CB/LVD,EAC,UkrSEPRO,UKCA,UK-EEL,LBL,FF,ErP-EEL,WEEE,Green BOM,RoHS DoC,ErP-Eco,REACH, EPEAT

PACKAGE CONTENTS

1. 3m power cord by ship area
2. Type C cable 1.8m(USB-IF certified)
3. Remote control with AAA battery x2
4. Quick Start Guide
5. RS232 adapter
6. Clamp x 5
7. Camera Plate x 2(1 for VB-CAM-201, 1 for UMB202)
8. Screw x 8 (camera 2+2, wall mount 4)
9. HDMI cable 3m(HDMI LA certified)
10. Compliance statement
