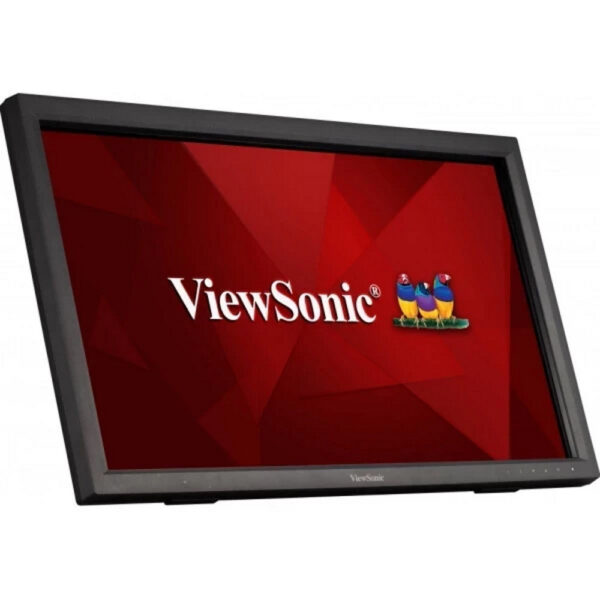

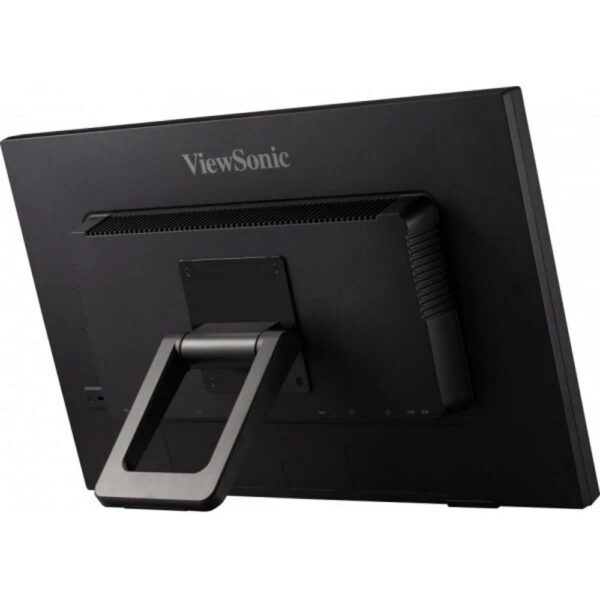

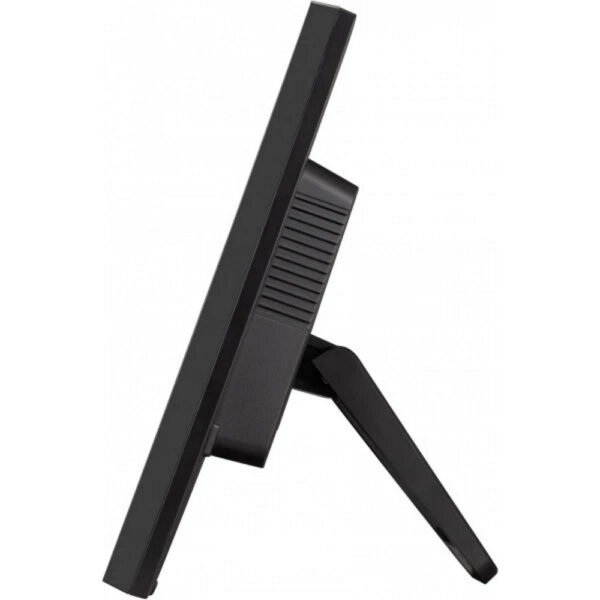

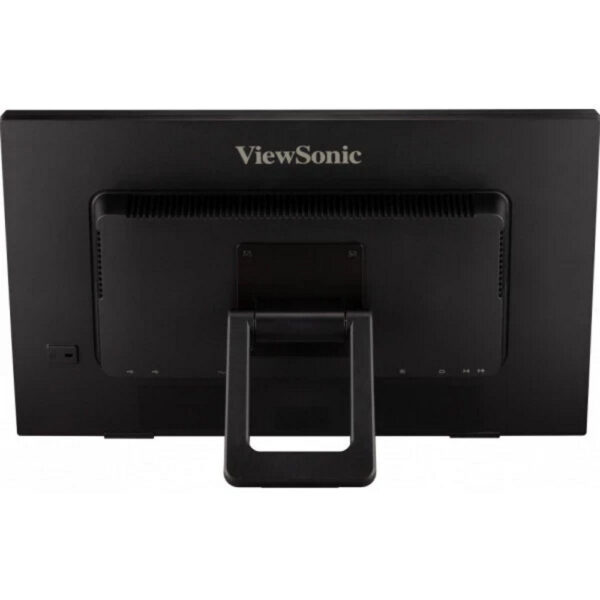

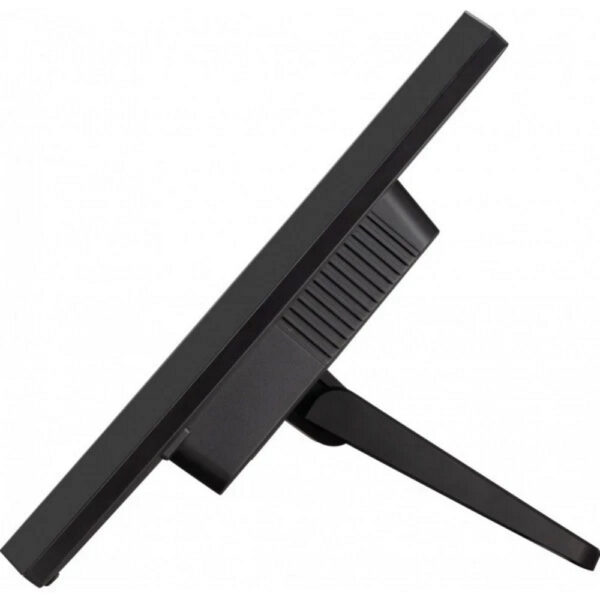

Viewsonic 23.8″ TD2423 10-Point Touch IR TN FHD Touchscreen Monitor

Intuitive 10-point touchscreen
Finger, stylus, and glove touch compatible
Magnetic pen placeholder
Adjustable back tilt up to 40-degrees
Scratch-resistant 7H hardness screen

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.6
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 7ms
Response Time (GTG w/OD): 7ms
Response Time (Typical Tr+Tf): 25ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ), sRGB: 104% size (Typ)
Pixel Size: 0.272 mm (H) x 0.272 mm (V)
Touch Screen: IR, 10-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.85mm

Compatibility
PC Resolution (max): 1920×1080
PC Operating System: Windows 10 certified; macOS tested

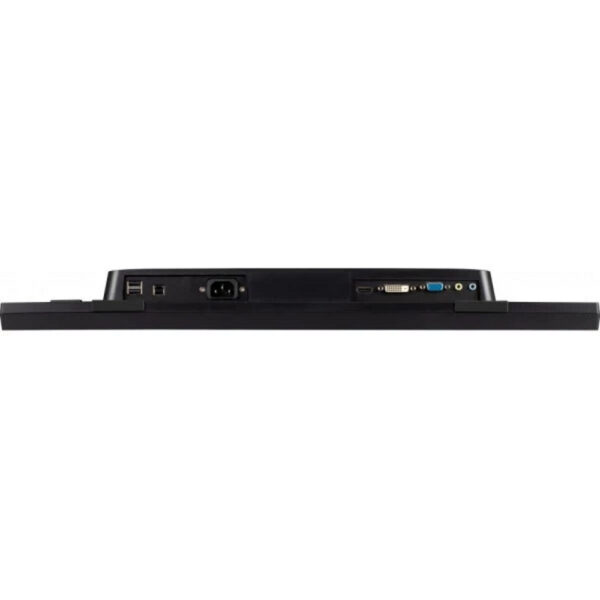

Connector
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2

Power
Eco Mode (Conserve): 11.5W
Eco Mode (optimized): 13.5W
Consumption (typical): 15.5W
Consumption (max): 16.5W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.5W
Power Supply: Internal
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes

Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

Wall Mount
VESA Compatible: 100 x 100 mm

Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz

Video Input
Digital Sync: TMDS – DVI-D, TMDS – HDMI (v1.4)
Analog Sync: Separate/Composite/SOG – RGB Analog

Ergonomics
Tilt (Forward/Back): 22º / 38º
Weight (imperial)
Net (lbs): 11.5
Net Without Stand (lbs): 10.3
Gross (lbs): 15.4
Weight (metric)
Net (kg): 5.2
Net Without Stand (kg): 4.7
Gross (kg): 7
Dimensions (imperial) (wxhxd)
Packaging (in.): 25.4 x 16.6 x 6.5
Physical (in.): 22.5 x 13.7 x 4
Physical Without Stand (in.): 22.5 x 13.7 x 2.4
Dimensions (metric) (wxhxd)
Packaging (mm): 645 x 422 x 166
Physical (mm): 571 x 348 x 101
Physical Without Stand (mm): 571 x 348 x 61
