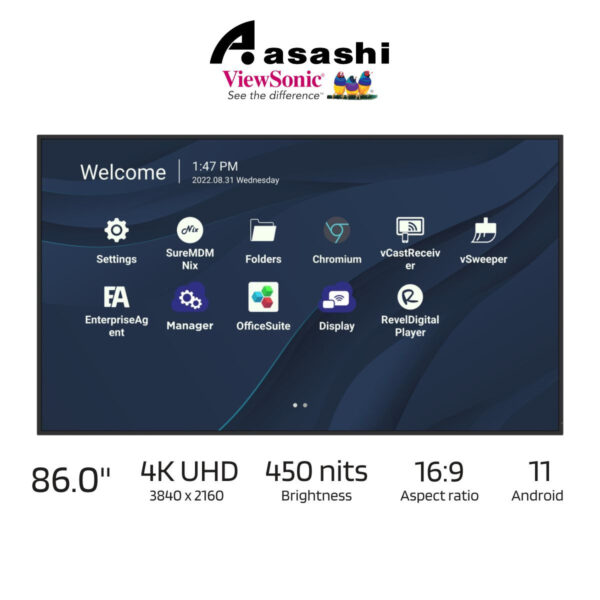

ViewSonic CDE8630 86″ 4K Ultra HD (3840 x 2160) Commercial Monitor | 450 nits cd/m2 Brightness | 60 Hz Refresh Rate | 16:9 Ratio | Android 11 (Not support PC slot)

RM13,999.00

👁 Currently 27 people are viewing this product.

Available on backorder

In-Store Pickup

Place your order on our website.
Confirm via WhatsApp for quick processing.
Chat with our sales team before payment.
Once processed, collect your order at A-sashi Wangsa Walk Mall.

Same Day Delivery

Contact our sales team via WhatsApp for pricing and stock availability.
Provide delivery details (Klang Valley only) for fee check.
Make payment via instant transfer : Maybank (5640-6143-6810).
Send proof of payment, and we’ll arrange delivery via Lalamove.

CDE8630

86" 4K Presentation Display

FEATURES

Wireless presentation for enhanced efficiency
Single USB-C cable for 65W power delivery
24/7 video playback for continuous communication
Remote device management with myViewBoard Manager
ProAV compatibility with Crestron, Extron, and AMX
Portrait-oriented display for impactful brand signage

SPECIFICATION

Display

Panel Size: 86"
Type/ Tech: TFT LCD Module. ADS type, DLED backlight
Display Area (mm): 1895.04 (H) ×1065.96 (V) (86” diagonal)
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 1.07G (8bits + FRC-)
Brightness: 450 nits (typ.)
Contrast Ratio: 1200:1 (typ.), 5000:1 (DCR enabled)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours
Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
Bezel: 14.7/14.7/14.7/14.7 mm (L/R/T/B)
Orientation: Landscape & Portrait

Platform

Processor: Quad-core ARM Cortex A55
RAM: 4GB
Storage: 32GB

INPUT

HDMI: 2.1×3 ( 3840×2160 @60Hz, HDMI 1 support ARC)
RS-232: x 1
OPS Slot: x 1
WiFi Slot: x 1

OUTPUT

HDMI: 2.0 x1 ( 3840×2160 @60Hz )
SPDIF: x 1

LAN

RJ45: x 1

USB

Type A: USB 2.0 x 1; USB 3.0 x 1 (USB 3.0 Support Smart USB)
Type C: x 1 (Support Smart USB, DP1.2, PD 65W, USB2.0, 100M ethernet)

SPEAKERS

10W x2

Embedded OS

Android 11

POWER

Voltage: 100-240 VAC +/- 10%
Consumption: 172 W(typ.) < 0.5W(off)

OPERATING CONDITIONS

Temperature (º C): 0 to 40℃
Humidity: 10%-90% RH

Operating Hours

7/24

DIMENSIONS (W x H x D)

Physical (inch / mm): 76.02 x 43.38 x 3.21in/ 1930.8 x 1101.8 x 81.6mm
Packaging (inch / mm): 83.07 x 48.3 x 8.86 in./2110 x 1227 x 225 mm

WEIGHT

Net (lb / kg): 95.13 lbs/43.15 kg
Gross (lb / kg): 133.93 lbs/60.75 kg

REGULATIONS

cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65

PACKAGE CONTENTS

1. Remote Control with batteries
2. Quick Start Guide
3. Power Cables
4. HDMI cable
5. USB-C cable
6. Wall Mount Screw x 4
7. RS232 adapter
8. Compliance statement

Weight	60.70 kg
Dimensions	211.00 × 25.00 × 125.00 cm
