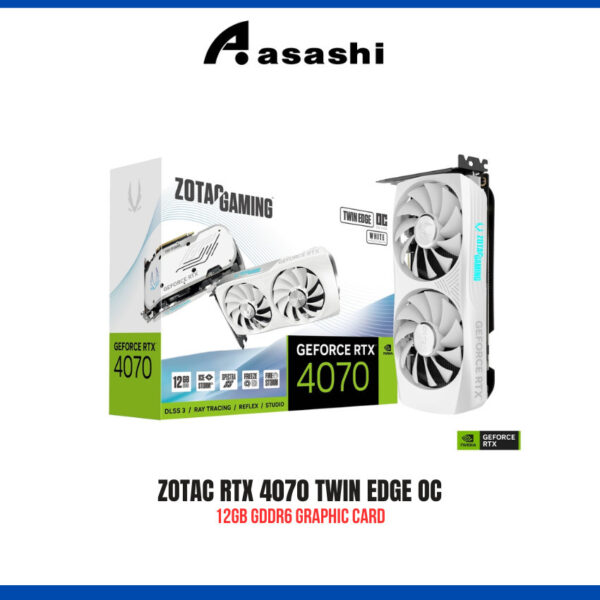

ZOTAC GAMING GeForce RTX 4070 Twin Edge OC White Edition 12GB GDDR6X Graphic Card (ZT-D40700Q-10M)

ZOTAC GAMING GeForce RTX 4070 Twin Edge OC White Edition 12GB GDDR6X Graphic Card

GPU Specifications

• GPU Model: NVIDIA GeForce RTX 4070 (Ada Lovelace architecture, AD104-2XX-A1)

• CUDA Cores: 5888

• Base Clock: 1920 MHz

• Boost Clock:

  • OC Mode: 2490 MHz

  • Default Mode: 2475 MHz

• Memory: 12GB GDDR6X

• Memory Speed: 21 Gbps

• Memory Interface: 192-bit

• Memory Bandwidth: 504.2 GB/s

• Bus Interface: PCIe 4.0 x16

• OpenGL Support: 4.6

• Digital Max Resolution: 7680 x 4320

Display Outputs

• HDMI: 1 × HDMI 2.1a

• DisplayPort: 3 × DisplayPort 1.4a

• Maximum Displays Supported: 4

• HDCP Support: Yes (2.3)

Power and Cooling

• Power Connectors: 1 × 8-pin PCIe

• Recommended PSU: 650W

• Maximum Power Consumption: 200W

• Cooling Solution: IceStorm 2.0 Advanced Cooling

  • Dual 90mm fans with active fan control

  • Wide aluminum fin-stack array heatsink

  • Five copper heat pipes for efficient heat dissipation

  • FREEZE Fan Stop: Fans stop spinning during low load for silent operation

• Slot Size: 2.2-slot

• Dimensions: 225.5 mm (L) × 123.2 mm (H) × 40.1 mm (D)

Build and Design

• Metal Backplate: Provides structural reinforcement and helps with heat dissipation

• RGB Lighting: SPECTRA 2.0 RGB Lighting customizable via FireStorm Utility

Additional Features

• DLSS 3 Support: AI-powered performance boost with NVIDIA DLSS 3

• Ray Tracing: Enhanced ray tracing performance with 3rd Generation RT Cores

• NVIDIA Reflex: Low-latency platform for competitive gaming

• NVIDIA G-SYNC: Smooth, tear-free gaming experience

• Resizable BAR: Improved performance in supported games

• VR Ready: Yes

• DirectX 12 Ultimate Support: Yes

• OpenGL 4.6 Support: Yes
